【EOL】BH45B1225 24-Bit A/D Peripheral IC Development Board BMHB4006

US$1.10
Out of stock
Product ID
BMHB4006

Note: This product has been discontinued and will not be restocked once sold out.

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!

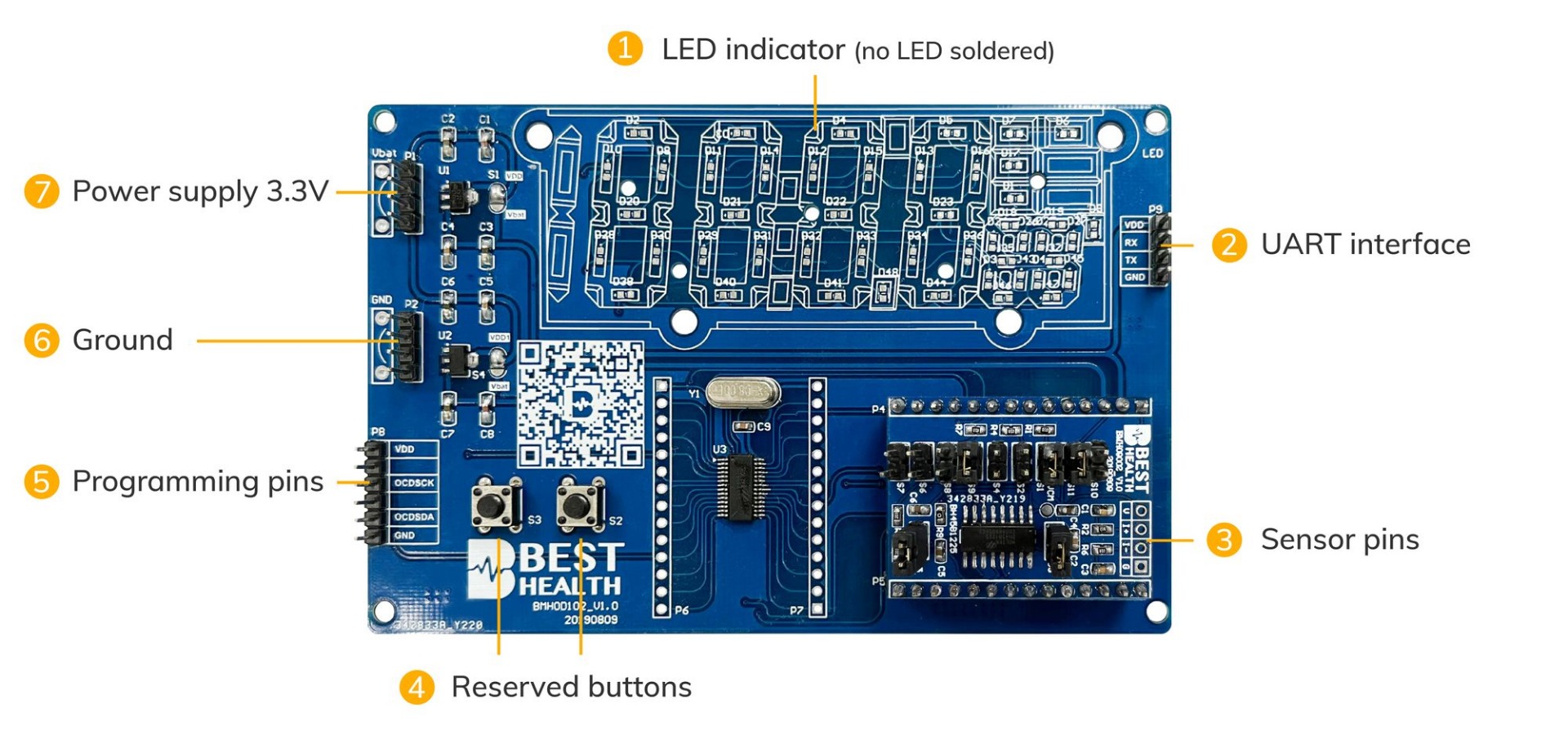

HARDWARE OVERVIEW

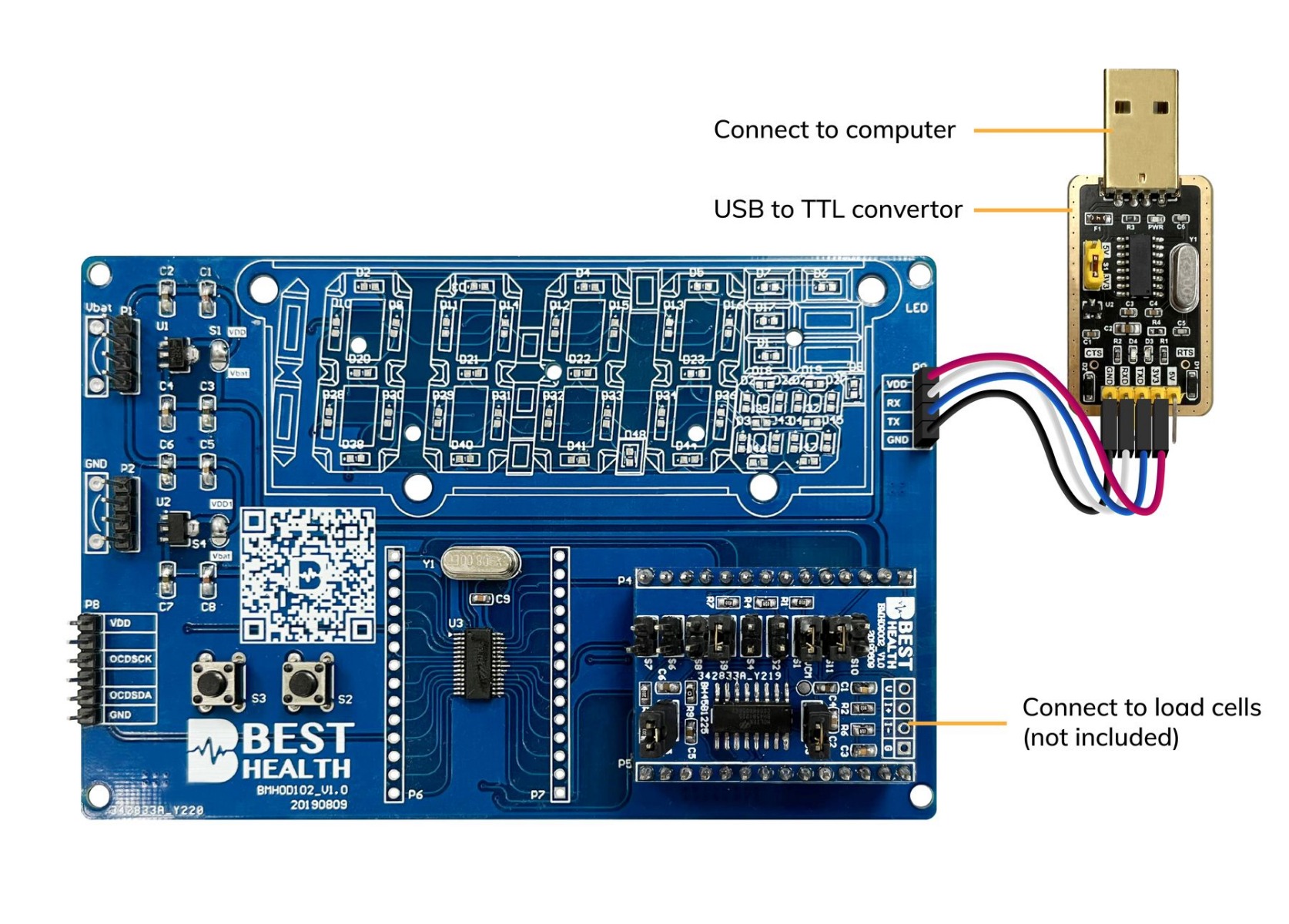

WIRING
SOFTWARE OVERVIEW

The BMHB4006 can be used with the 24-Bit ADC platform. (please refer to "DOCUMENTS" to download it)

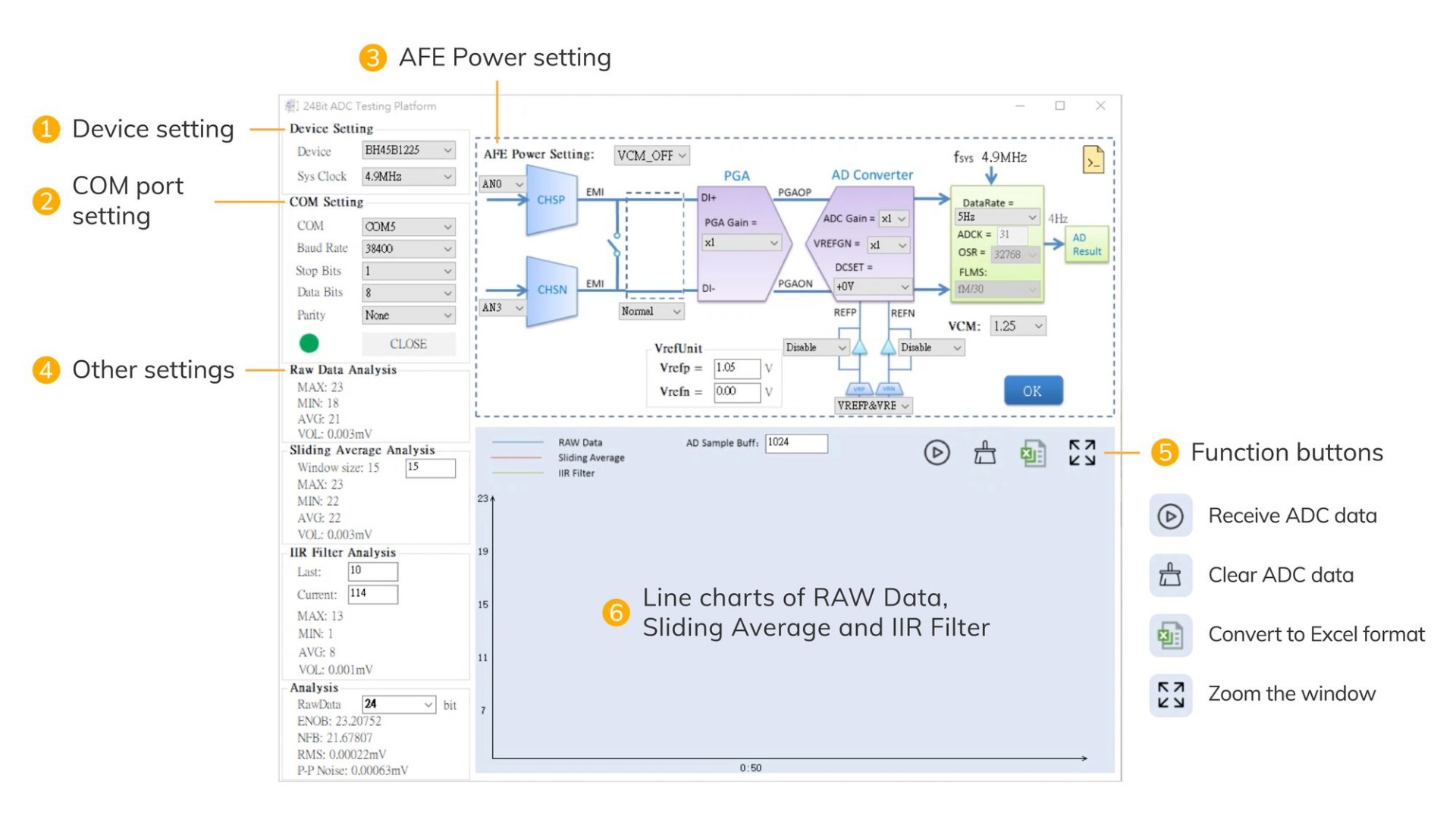

  1. Device setting: choose the corresponding device and system clock
  2. COM port setting: choose the corresponding com port.
    - Baud rate: 38400
    - Stop bits: 1
    - Data bits: 8
    - Parity: None
    Press "OPEN" button to open com port after setting
  3. AFE power setting
  4. Other settings: the maximum and minimum values of RAW Data, Sliding Average and IIR Filter
  5. Function buttons
  6. Line charts of RAW Data, Sliding Average and IIR Filter
RESOURCES

IC: Holtek BH45B1225, Enhanced 24-Bit A/D Peripheral IC, including datasheet, package information, tool information, etc.

Application Note: AN0585EN, 24-bit ADC PCB Layout Guide

More Information
HS Code (reference) 8473.50.00.00-1
