BS86C16A-3 28SOP

US$ 1.13
In stock
Quantity
1000
Product ID
BS86C16A-3-28SOP
DESCRIPTION

The BS86C16A-3 is a 16-key touch key A/D Flash MCU with LED/LCD driver. The internal 12-bit A/D converter can capture analog signals from the external environment, such as temperature, humidity, or other voltage signals, etc. This makes the BS86C16A-3 suitable for home appliances requiring temperature detection, such as refrigerators, cookers, electric kettles, electric ceramic stoves, electric ovens, microwaves, wine cabinets, and other related products.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit Price
1-9 - US$ 1.13
10-99 15% US$ 0.96
100-499 25% US$ 0.85
500+ 35% US$ 0.74
For more quantity discounts please contact us
Follow Us
  • Details
  • Documents
FEATURES
  1. Operating voltage: 2.7V~5.5V
  2. Oscillator types
    - High Speed Internal RC -- HIRC: 8/12/16MHz
    - Low Speed Internal RC -- LIRC: 32kHz
    - Low speed External Crystal -- LXT: 32768Hz
  3. Fully integrated 16 touch key functions
  4. Up to 26 bidirectional I/O lines
  5. Multi-channel 12-Bit resolution A/D converter
  6. Serial Interfaces Module – SIM for SPI or I2C
  7. 1 integrated full-duplex asynchronous serial communications Interfaces – UART

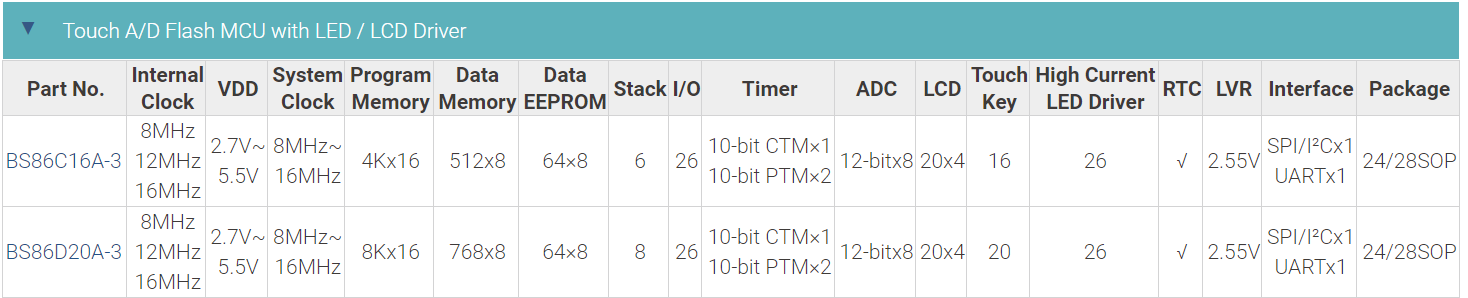

PRODUCT SERIES
DEVELOPMENT TOOLS
  1. Debug Adapter : e-Link
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU: Holtek BS86C16A-3, Touch A/D Flash MCU with LED/LCD Driver, including datasheet, package dimension, etc.
