BMduino IoT Shield BMB81TB01A

US$24.70 (Excl. Tax)
In stock
Quantity
33 pieces
Product ID
BMB81TB01A

The BMB81TB01A is an IoT expansion board developed by BestModules for the BMduino series, designed specifically for the BMduino UNO development board (BM53A367A) . Simply stack this expansion board on top of the main board and it immediately converts the scattered I/O pins into easy-to-use HY2.0 keyed connectors, greatly simplifying wiring and setup.

The board features a built-in Wi-Fi + BLE 5.0 wireless module and multiple 5-pin keyed connectors, allowing quick compatibility with a wide range of BMduino modules. Whether for classroom teaching, sensor integration, IoT learning projects, or interactive device development, the BMB81TB01A helps make your development workflow more intuitive, smoother, and easier to manage.

Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
Product Description

The BMB81TB01A is an IoT expansion board created by BestModules for the Arduino ecosystem. It can be directly stacked onto the BMduino UNO (BM53A367A) . The BM53A367A fully supports Arduino UNO R3 pin mapping and development methods, while offering enhanced I/O capability and power stability, giving users more flexibility when developing hardware under the familiar Arduino IDE and commonly used libraries.

When paired with the BMB81TB01A, the UNO’s original digital pins, analog pins, and multiple serial interfaces are reorganized into clear and easy-to-read HY2.0 keyed connectors, reducing the time spent checking pinouts or dealing with jumper wires. This setup is ideal for teaching labs, prototyping, or projects with multiple sensors.

The BMB81TB01A covers a wide range of applications—from basic sensor learning and interactive design to full IoT projects—providing educators, makers, and developers with reliable expansion capability and a smooth development experience.

Features
  1. Supports direct stacking with BMduino UNO (BM53A367A)
    - Easy installation, no jumper wires required
    - Fully compatible with Arduino UNO R3 pins and development workflow
  2. Built-in wireless module: BW16 (Wi-Fi + BLE 5.0)
    - Supports 2.4GHz / 5GHz dual band
    - Suitable for IoT data upload, remote control, and more
  3. HY2.0 keyed connector design
    - Organizes digital / analog / serial interfaces
    - More intuitive plug-and-play wiring with fewer jumper cables
  4. Power input and power management
    - USB Type-C or DC 5V–24V input
    - Provides stable 5V & 3.3V output, up to 1.5A total current
    - Integrated Buck / Boost / LDO power circuitry
  5. Rich communication & expansion interfaces
    - I2C × 2 (3.3V)
    - UART × 2 (3.3V)
    - BMCOM1 (3.3V), BMCOM2 (5V)
    - 5-PIN × 1, 3-PIN × 10, compatible with multiple BestModules products
  6. Compatible with BestModules HY2.0 series
    - Sensors, displays, and communication modules can plug in directly
    - Cleaner wiring, ideal for teaching and prototyping
  7. Suitable for IoT education, sensor integration, interactive device development, and project-based learning
  8. Dimensions: 110 × 84 × 23.5 mm

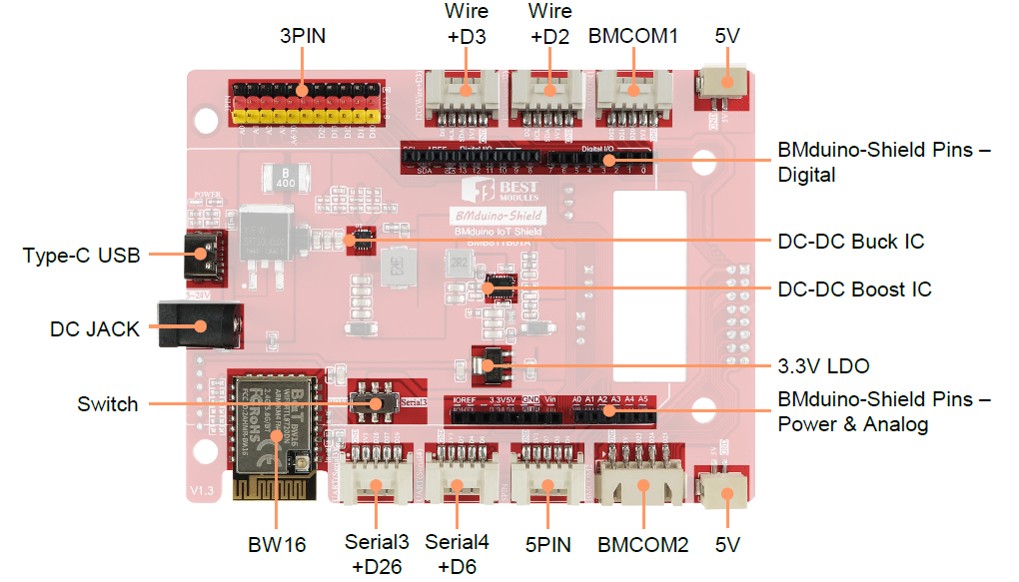

Pin Function Overview
Resources
  1. Development Board: BM53A367A, BMduino-UNO development board, including user manual, example code, and more.
User's guide V1.00 (1.91 MB)
More Information
HS Code (reference) 9030.90.90.00-8
Net Weight 51.4g
Dimension 110 × 84 × 23.5 mm
