Home 【EOL】2.4GHz Transmitter IC BC5162 8SOP-EP (5 pieces)
-
Home
-
【EOL】2.4GHz Transmitter IC BC5162 8SOP-EP (5 pieces)
【EOL】2.4GHz Transmitter IC BC5162 8SOP-EP (5 pieces)
US$1.60
Out of stock
Product ID
BC5162-8SOP-EP
Note: This product has been discontinued and will not be restocked once sold out.
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!

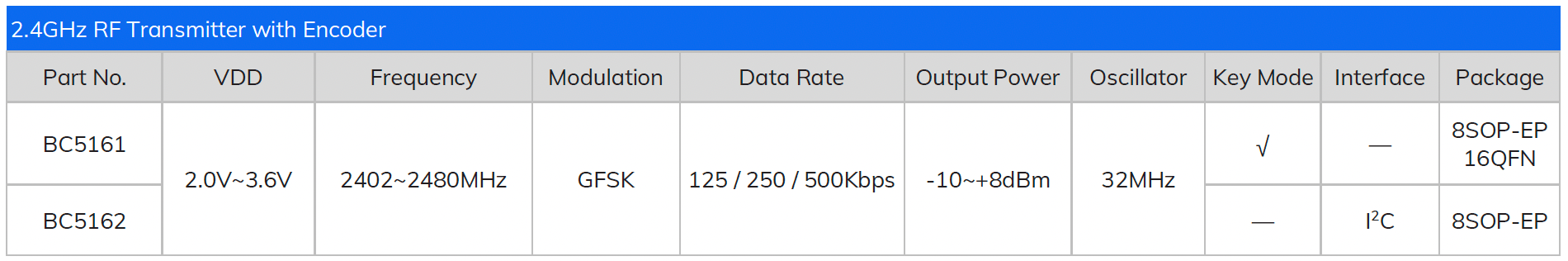

FEATURES
- Operating voltage: 2.0V~3.6V
- Frequency band: 2402MHz~2480MHz
- Complete 2.4GHz GFSK (BT = 0.5) modulation transmitter
- Programmable data rate: 125 / 250 / 500Kbps
- Programmable TX output power: up to 5dBm (Max. +8dBm)
- FUSE Data Memory: 320 bits
- Low current consumption
- Deep sleep mode current: 0.5μA
- I (LIRC_ON) current: 2.5μA
- TX current consumption: Typ. 15.5mA @ 0dBm TX power
- Support 32MHz crystal (±20ppm)
- Interface: I2C mode
- FCC / ETSI Compliant
RESOURCES
- IC : Holtek BC5162, 2.4GHz GFSK Transmitter with Encoder, including datasheet, package dimension, etc.
More Information
HS Code (reference) |
8542.39.00.22-8 |
