BC66F3662 46QFN

US$1.72 (Excl. Tax)
Out of stock
Product ID
BC66F3662-46QFN
DESCRIPTION

The BC66F3662 is a low current Sub-1GHz RF SoC MCU with a fully integrated high power programmable amplifier, a GFSK frequency synthesizer, and a digital demodulation function. Its RF characteristics comply with ETSI / FCC specifications. It operates in the below 1GHz license-free ISM bands and is suitable for IoT products, smart homes, industrial/agricultural controllers, and many other wireless bidirectional transmission products.

The BC66F3662 can be applied in the 315MHz, 433MHz, 470MHz, 868MHz, and 915MHz frequency bands. It incorporates a highly integrated sub-1GHz transceiver and a baseband modem with programmable data rates from 2Kbps to 250Kbps.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.72
10-99 15% US$1.46
100-499 25% US$1.29
500+ 35% US$1.12
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. Operating voltage: 1.9V~3.6V
  2. Frequency band: 315/433/470/868/915MHz
  3. FSK/GFSK modulation
  4. Programmable data rate: 2Kbps~250Kbps
  5. Programmable TX output power: up to 13dBm
  6. On-chip VCO and Fractional-N synthesizer with integrated loop filter
  7. AGC (Auto Gain Control) to achieve wide input range, up to +10dBm
  8. AFC (Auto Frequency Compensation) for frequency drift due to X’tal aging

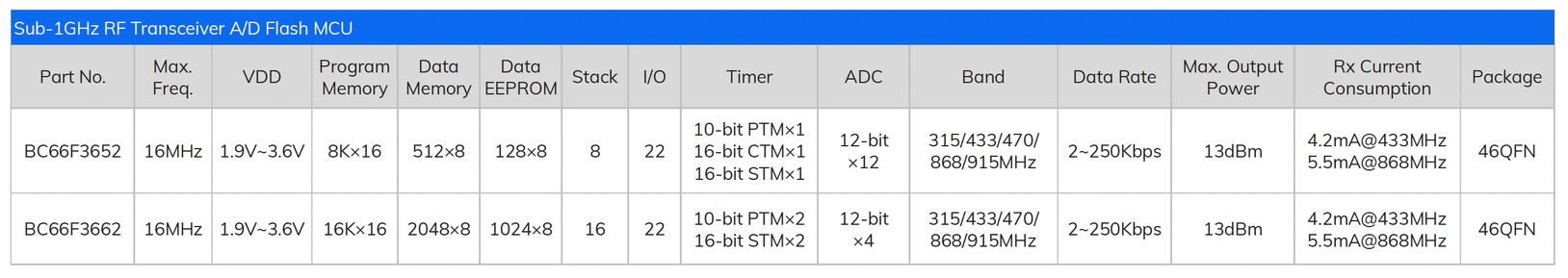

PRODUCT SERIES
RESOURCES
  1. MCU : Holtek BC66F3662, Sub-1GHz RF Transceiver A/D Flash MCU, including datasheet, package dimension, etc.
File Icon Datasheet V1.30 (3.80 MB)
