【EOL】BLE Controller BC7701 32QFN

US$1.15
Out of stock
Product ID
BC7701-32QFN

Note: This product has been discontinued and will not be restocked once sold out.

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!

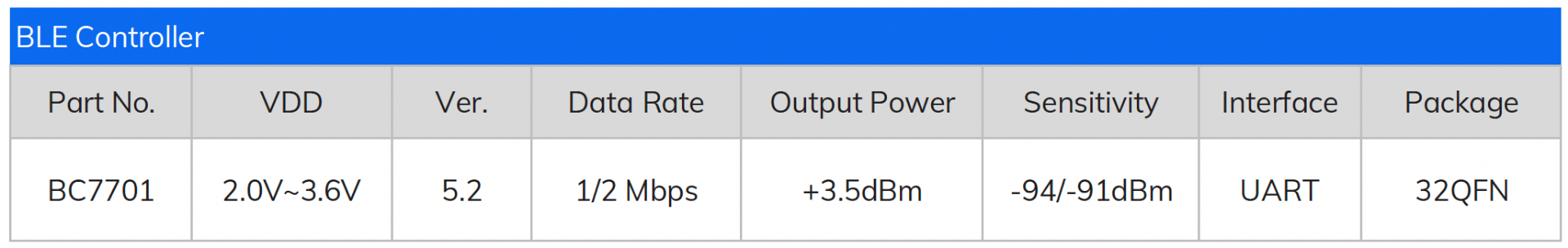

FEATURES
  1. Operating frequency: 16MHz
  2. 160KB on-chip Flash memory
  3. 20KB on-chip SRAM
  4. 2.4GHz RF transceiver compatible with Bluetooth Low Energy (BLE) 5.2 specification
  5. GFSK modulation, Frequency-Hopping Spread Spectrum (FHSS)
  6. Support LE 1Mbps and 2Mbps
  7. Receiver supports programmable gain of over 70dB
  8. Receiver sensitivity of -94dbm @1Mbps
  9. Programmable transmitter output power up to +3.5dBm
  10. 10-bit generic ADC

RESOURCES
  1. IC : Holtek BC7701, BT5.2 BLE Controller, including datasheet, package dimension, etc.
Datasheet V1.00 (369.13 kB)
More Information
HS Code (reference) 8542.39.00.22-8
