【EOL】BLE Transparent Transmission Module BCM-7602-G01

US$2.54

Out of stock

Product ID

BCM-7602-G01

Note: This product has been discontinued and will not be restocked once sold out.

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!

Features:

Operating voltage: 2.2V~3.6V
Operating current:
- Power down mode: 500nA
- Sleep mode: 20μA
- Broadcast mode: 180μA @ 250ms
- Transparent transmission: 1.1mA @ 20 bytes, 5 times/sec.
Frequency range: 2402MHz~2480MHz
TX output power: +3dBm @ Max. power setting
RX sensitivity: -90dBm (Typ.) @ 1M BPS
Modulation: GFSK
Transmission distance: 60m in open area
Interface: 8 pins × 2 – pitch = 1.27mm stamp hole
Temperature range: -40°C~85°C
Dimension (mm): 16 x 16 x 2
Weight: 0.7g
Packing List: BLE Transparent Transmission module BCM-7602-G01x 1

Documents:

link to Holtek website for BCM-7602-G01 datasheets, programming user guide, test report, patch code, etc.

More Information
HS Code (reference)	8517.79.00.00-6

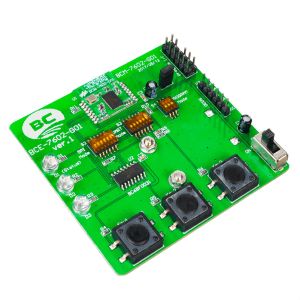

【EOL】BLE Module Development Kit BCE-7602-G01
