BH66F5362 48LQFP

US$1.15
In stock
Quantity
1000 pieces
Product ID
BH66F5362-48LQFP
DESCRIPTION

The BH66F5362 is a Flash Memory A/D 8-bit high performance RISC architecture microcontroller, it is suitable for use in high accuracy measurement products such as electronic scales, blood pressure meters, thermometers, instruments and so on.

The BH66F5362 includes fully integrated SPI, I2C and UART interface functions for communication, also includes a fully integrated 24-bit A/D converter with an effective number of bits (ENOB). The device can implement high accuracy measurements with the ENOB is up to 20.7 bits and the conversion speed is up to 1.6kHz.

Protective features are included in the device, such as an internal Watchdog Timer, Low Voltage Reset / Detector coupled and ESD protection, with these features, the device can be operated reliably in hostile electrical environments.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.15
10-99 15% US$0.98
100-499 25% US$0.86
500+ 35% US$0.75
For more quantity discounts please contact us
Follow Us for More Updates!

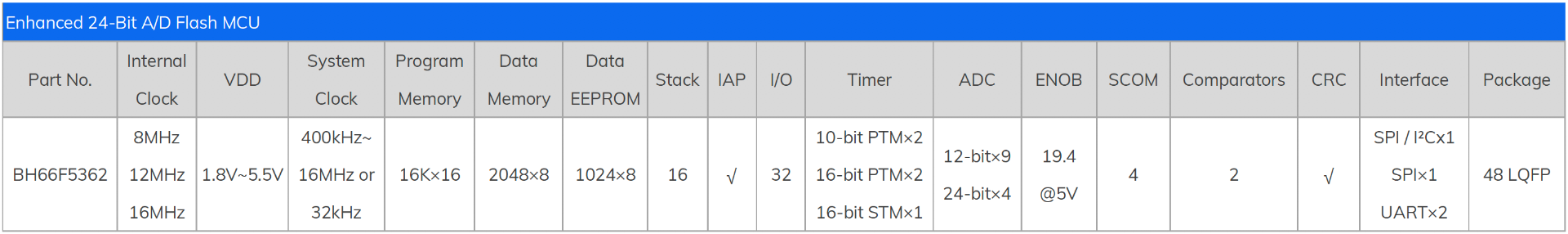

FEATURES
  1. Operating voltage : 1.8V~5.5V
  2. Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
  3. Fully integrated internal oscillators require no external components
  4. Oscillator types :
    - External High Speed Crystal – HXT
    - External Low Speed 32.768kHz Crystal – LXT
    - Internal High Speed 8 / 12 / 16MHz RC – HIRC
    - Internal 32kHz RC – LIRC
  5. 2 differential or 4 single-end channel 24-bit resolution Delta Sigma A/D converter
  6. In Application Programming – IAP
  7. Programmable I/O source current for LED applications
  8. Software controlled 4-SCOM line LCD driver with 1/2 bias
  9. Low Voltage Reset function – LVR
  10. Low Voltage Detect function – LVD
  11. Integrated 16-bit Cyclic Redundancy Check function – CRC
  12. 115 powerful instructions

DEVELOPMENT TOOL
  1. Debug Adapter : e-Link
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU : Holtek BH66F5362, Enhanced 24-Bit A/D Flash MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.0000
