main product photo

BH67F5265 48LQFP

US$1.45 (Excl. Tax)
Out of stock
Product ID
BH67F5265-48LQFP

The BH67F5265 is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller which includes a multi-channel 24-bit Delta Sigma A/D converter and a fully integrated LCD driver. For memory features, it offers Flash Program Memory, RAM Data Memory, and true EEPROM memory for storage of non-volatile data, while supporting In-Application Programming (IAP) for easy updates. With integrated SPI, I2C, and UART interfaces along with versatile Timer Modules, the device is ideally suited for applications that interface directly to analog signals requiring low noise and high accuracy measurement.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.
Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.45
10-99 15% US$1.23
100-499 25% US$1.09
500-999 35% US$0.94
1000-4999 40% US$0.87
5000+ 42% US$0.84
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. Operating Voltage: 2.2V~5.5V
  2. Maximum Frequency: 16MHz
  3. Memory: 16K×16 Flash Program Memory, 1024×8 Data Memory, 1024×8 Data EEPROM
  4. I/O Count: Up to 43 bidirectional I/O lines
  5. 24-Bit Resolution Delta Sigma A/D Converter: 24-bit × 6 channels (ENOB: 19.1)
  6. LCD Driver Function: 30×4, 28×6, 26×8
  7. Timer Modules: One 16-bit Standard TM (STM) and three 10-bit Periodic TMs (PTM)
  8. Communication Interfaces: UART × 1, Standalone SPI × 1, SIM (SPI / I2C) × 1
  9. Integrated 2 Operational Amplifiers (OPA)
  10. Real-Time Clock (RTC) Support
  11. Integrated Multiplier/Divider Unit (MDU)
  12. Stack Depth: 16-level subroutine nesting
  13. Supports In-Application Programming (IAP)

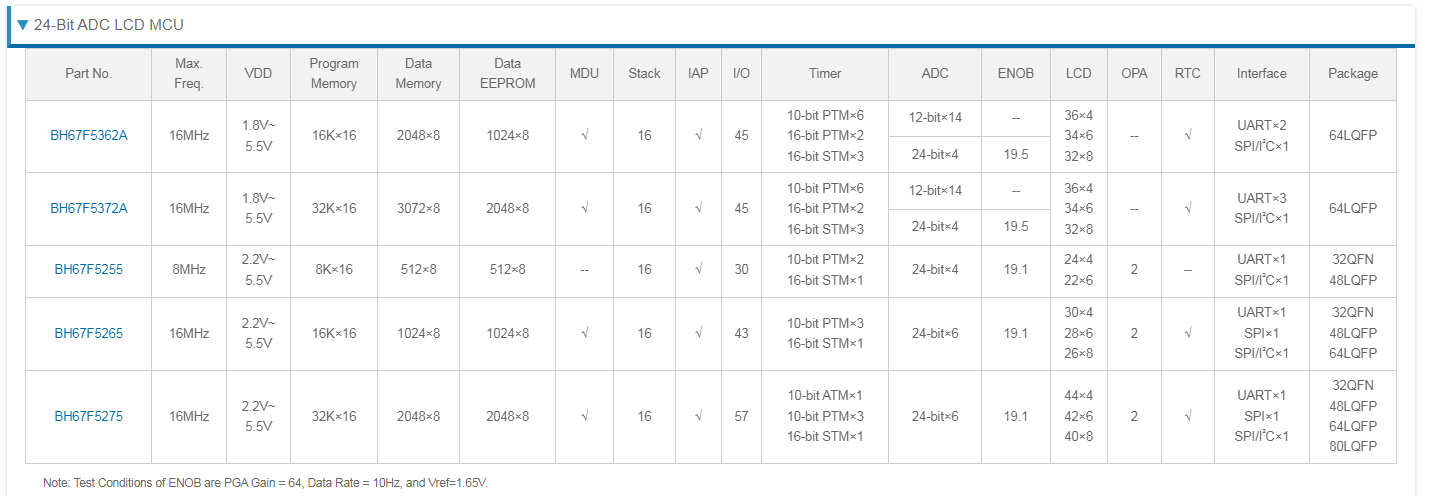

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Debug Adapter : e-LinkPro2
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU : Holtek BH67F5265, 24-Bit ADC LCD Flash MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.00.00-2
