BA45F5250 Development Board for Voice Smoke Detector Alarm BMAN5250DSA

US$30.50 (Excl. Tax)

Out of stock

Product ID

BMAN5250DSA

This is PRE-ORDER product.
Please contact us before ordering.

BMAN5250DSA is a development board based on the Holtek 8-bit smoke detector MCU BA45F5250. It functions as a standalone voice-enabled smoke alarm and is intended for product development, functional verification, and demonstration purposes.

Notify me when this product is in stock

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!

Spin Modules

PRODUCT INSTRUCTION

POWER-ON SELF-TEST
After power-on, the red LED flashes once and the buzzer beeps once.
If calibration has not been completed or has failed, the red LED remains continuously ON.
CALIBRATION MODE
Before power-on, short the BD calibration connector (PC4 to GND) to enter calibration mode.
In calibration mode, the red LED flashes once per second.
After successful calibration, the device automatically enters standby mode.
If calibration fails, the red LED remains continuously ON.
STANDBY MODE
Under normal conditions, the device operates in standby mode.
The red LED flashes once every 40 seconds.
LOW-VOLTAGE MODE
When the supply voltage drops below 2.7V, the device enters low-voltage mode.
The red LED flashes once every 40 seconds and the buzzer beeps once.
The speaker plays a low-battery voice prompt.
ALARM MODE
When the smoke concentration exceeds the alarm threshold, the device enters alarm mode.
The red LED keeps flashing.
The buzzer sounds intermittently, and the speaker plays alarm voice prompts.
SILENT MODE
In alarm mode, pressing the TEST button activates silent mode.
The red LED continues flashing, while the buzzer and speaker are muted.
The silent period lasts for 90 seconds and exits automatically.
TEST MODE
In standby mode, pressing the TEST button triggers test mode.
The device simulates an alarm condition, including LED flashing, buzzer sound, and test voice playback.
Releasing the button exits test mode.
FAULT DETECTION
If the IR transmitter or IR receiver is open-circuit or short-circuit,
the red LED flashes twice every 40 seconds and the buzzer beeps twice.
DEBUG OUTPUT
The debug output pin is PA2.
Press and hold the TEST button before power-on to enable debug output.
The baud rate is 38400, and the data format is 8-N-1.

PRODUCT FEATURES

Photoelectric smoke detection with audible and visual alarm indication.
Integrated voice alarm, fault indication, low-battery warning, and self-test functions.

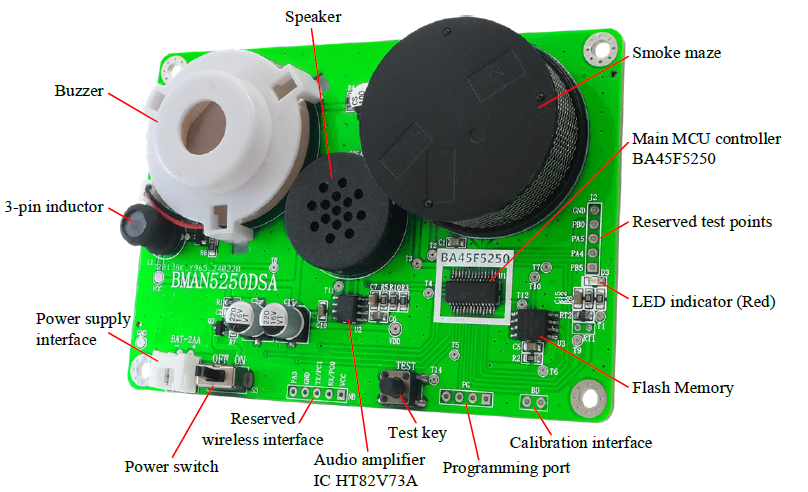

DEVELOPMENT BOARD FUNCTIONS

RESOURCES

MCU: Holtek BA45F5250 , Smoke Detector Flash MCU, including datasheet and package information.
Application Note: WAS-1811 , Voice Smoke Detector Alarm Application Guide.
