Get multiple DC outputs and smart servo control all in one clean shield!
The BMP26T030 is a medium-power supply expansion board built for the BMduino UNO board. Simply plug in a DC adapter or an external battery pack to deliver 4 independent voltages at once (easily pick 3.3V, 5V, 9V, 12V, or 18V) through its internal buck circuit! It also includes two types of 1-wire UART servo ports, making it effortless to power and run digital bus servos for your maker projects.
This product can be directly plugged into our designed BMduino UNO development board for use. Simply align the header pins on the back of the BMP26T030 with the sockets on the development board and plug it in, without any extra wiring needed.
Other pins are not used
| Pin | Function | BMduino Pin | Description |
|---|---|---|---|
| 3 | RESET | RESET | Reset BMduino UNO development board |
| 8 | Vin | Vin | Power supply pin for BMduino UNO development board |
| 6 & 7 | GND | GND | Negative power supply, ground |
| 19 | mRX | D4 | UART receive data line |
| 20 | mTX | D5 | UART transmit data line |

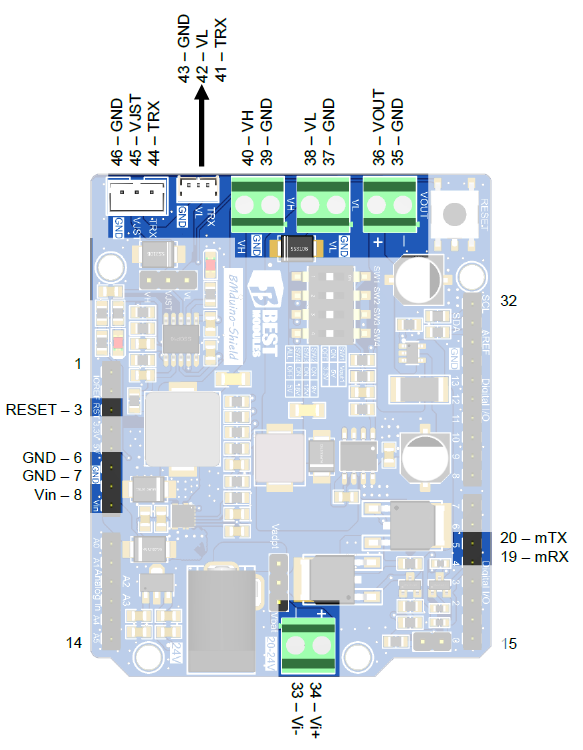

External Power, VOUT, VH, and VL Pins
| Pin | Function | Description |
|---|---|---|
| 33 | Vi- | External power negative supply, ground |
| 34 | Vi+ | External power positive supply |
| 35 | GND | VOUT negative power supply, ground |
| 36 | VOUT | VOUT positive power supply |
| 37 | GND | VL negative power supply, ground |
| 38 | VL | VL positive power supply |
| 39 | GND | VH negative power supply, ground |
| 40 | VH | VH positive power supply |
1-Wire UART Communication Interface
| Pin | Function | Description |
|---|---|---|
| 41 & 44 | TRX | 1-wire UART communication pin |
| 42 | VL | Servo positive power supply, outputs VL |
| 45 | VJST | Servo positive power supply, outputs VH or VL selectable via jumper |
| 43 & 46 | GND | Servo negative power supply, ground |
Note: The 1-wire digital servo interface only supports the BMduino UNO development board and does not support the Arduino UNO development board.
| HS Code (reference) | 9030.90.90.00-8 |
|---|---|
| Net Weight | 33.7 g |
| Dimension | 67 × 53.34 ×23 mm |
