Weighing Kit (5Kg) BMH12M105

This product has been discontinued and will not be restocked once sold out.

US$17.00 (Excl. Tax)
Out of stock
Product ID
BMH12M105
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
DESCRIPTION

The 24-bit ADC module used in BMH12M105 is developed using the Holtek 8-bit MCU BH66F5232. The module supports both I2C and UART interfaces and can directly output weight values in grams, eliminating the need for unit conversion. You can issue the command to read ADC values as well.

PRODUCT FEATURES
  1. Operating voltage: 2.7V~5.5V
  2. Operating current: 5mA @5V
  3. Standby current: 1μA @5V
  4. Weighing range: 0~5kg
    - Resolution: 1g
    - Comprehensive measurement error: 0.05%
  5. Taring function
  6. Interface: I2C (address: 0x50), UART (9600bps)
  7. Factory calibration
  8. Dimension: 120 x 120 x 36.4 mm
  9. Net weight: 282g

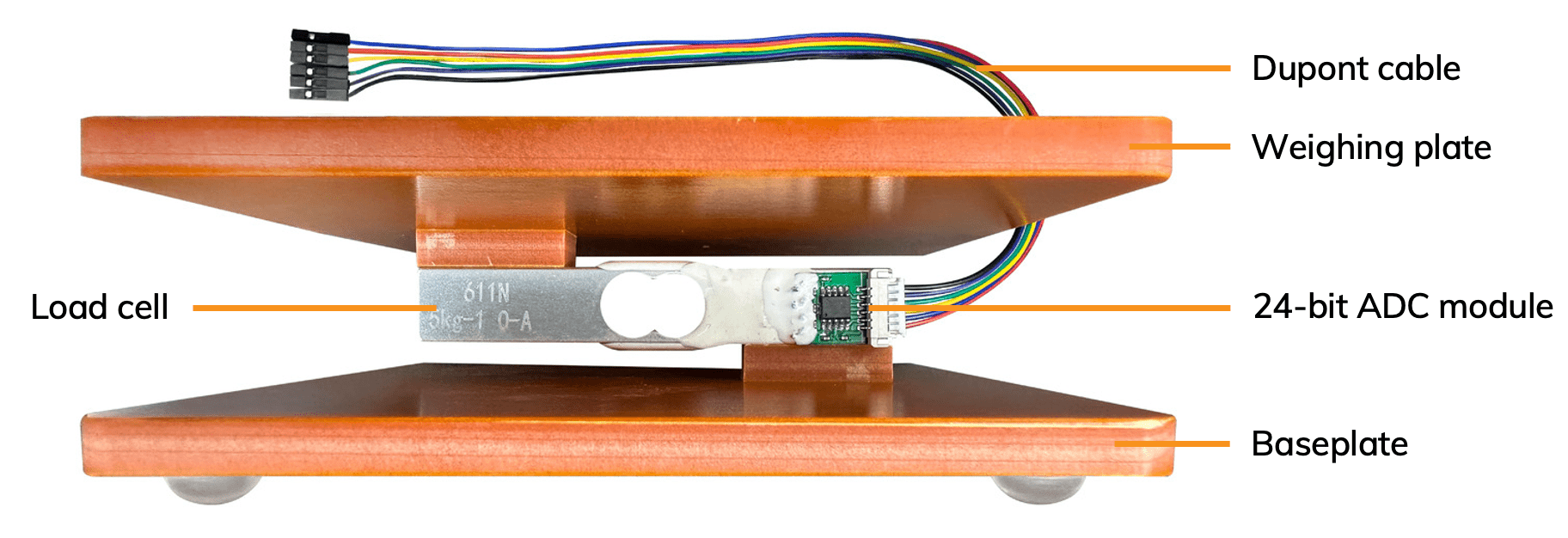

HARDWARE OVERVIEW

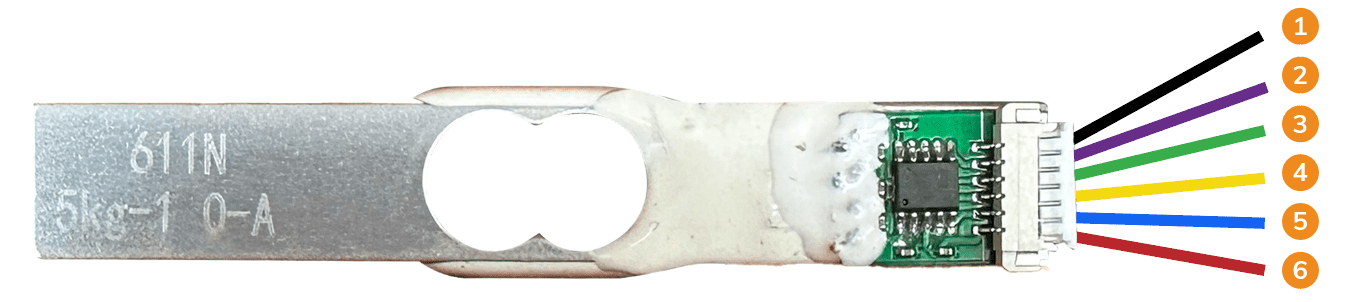

PIN DESCRIPTION
Pin Name Function
1 GND Ground
2 RXD UART: RX
3 TXD UART: TX
4 SCL I2C: clock line
5 SDA I2C: data line
6 VDD Power supply: 2.7V~5.5V

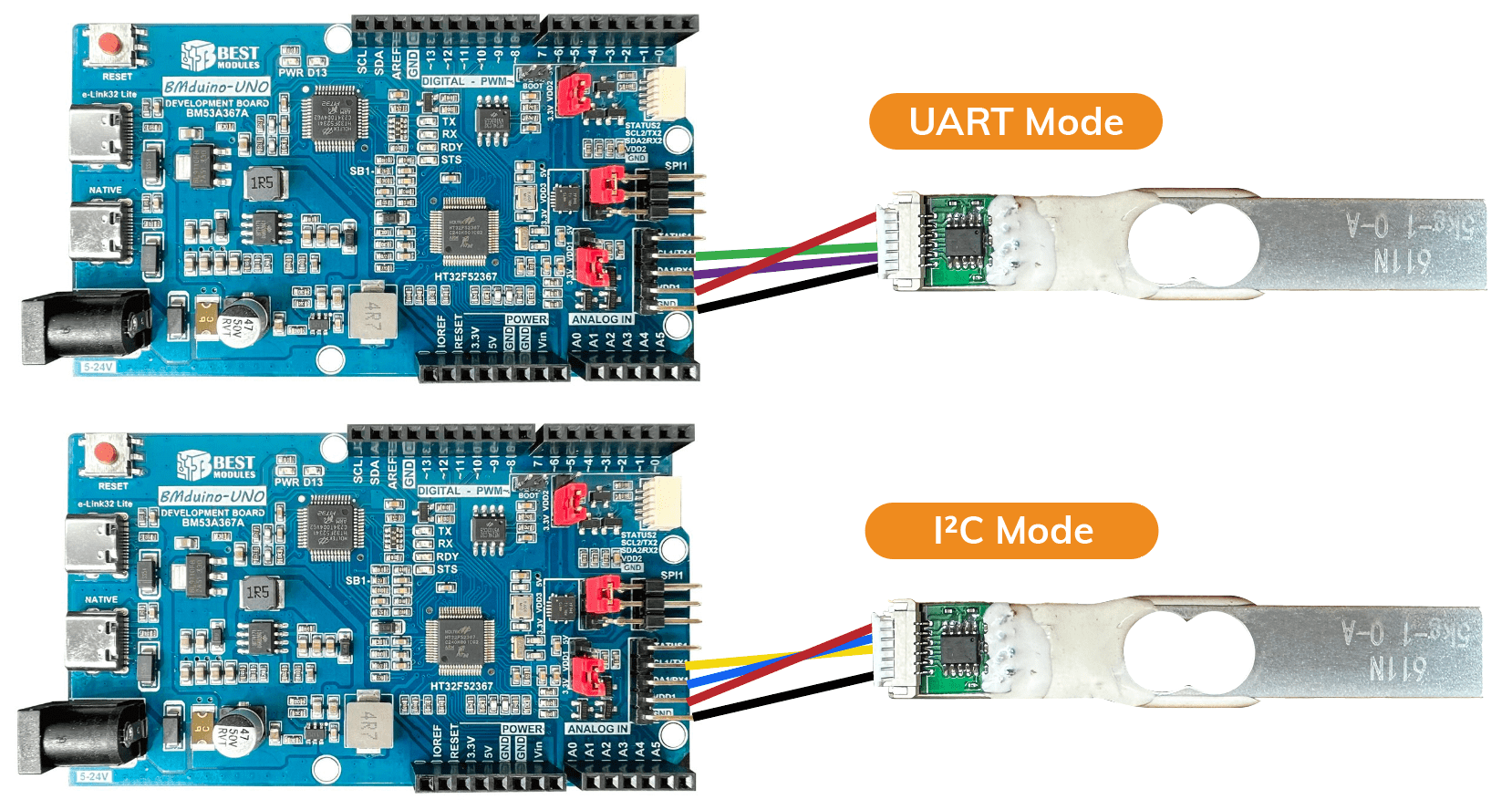

Wiring
RESOURCES
  1. MCU: BH66F5232, 24-Bit Delta Sigma A/D Flash MCU Integrated Regulator, including datasheet, package information, etc.
File Icon User's guide V1.10 (810.87 kB)
File Icon Arduino library V1.0.2 (950.72 kB)
File Icon Arduino library guide V1.10 (947.59 kB)
File Icon Schematic (141.38 kB)
File Icon PCB layout (40.33 kB)
