The ESK-45F0060-D00 is an RGB LED lighting pattern development board, which has a built-in Holtek RGB Dimming LED Flash MCU HT45F0060. It can be used independently or cascaded with multiple ESK-45F0060-D00 via ESK-66F2390-M00.
The development board includes an RGB LED. With the Holtek RGB LED Lighting Pattern Workshop, users do not need to write codes. The brightness and colors of LEDs are adjustable. There are four lighting effect modes : Always-on, Blinking, Breathing, Flowing and Colorful streamer modes. The Workshop has a built-in color palette, up to seven colors can be set. It can be used after programing with e-Link.
The ESK-45F0060-D00 provides two modes : Stand-alone mode, Cascade mode. In stand-alone mode, it can be operated independently. In cascade mode, multiple ESK-45F0060-D00 can be connected in series, and users can use ESK-66F2390-M00 as the master controller to switch the lighting effects.

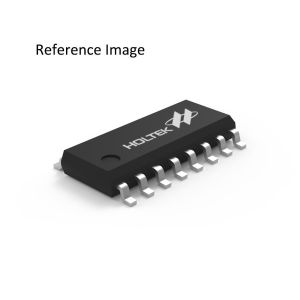

The HT45F0060 includes fully integrated RGB LED driver circuits, a single line cascading transceiver interface and 4 segment current source. Also includes three groups of 10-bit PWM generators each of which can have 1024 different programmable brightness levels.
