Low Voltage Power Development Kit (8-bit) ESK-BLDC-100

US$55.00
In stock
Quantity
2
Product ID
ESK-BLDC-100

This is PRE-ORDER product. Lead time : 2 weeks.

The product ESK-BLDC-100 is the BLDC low voltage power development kit that supports the input voltage of DC 9V to 26V and provides a maximum of 2.5A DC current to brushless DC motor. You can use the product with BLDC Motor Workshop.

NOTE
  1. Please contact Holtek to get the BLDC Motor Workshop development platform software.
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
DESCRIPTION

The product includes one low voltage power board, four types of MCU adaptors, and one motor.
The MCU adaptors are as following:

Part number Package
BD66FM5245 20SSOP
BD66FM5252 28SSOP
HT66FM5242 20SSOP
HT66FM5440 28SSOP

You can select one of the above MCU adaptors to use with the power board. Just insert the MCU adaptor into the power board, connect the power board to e-Link or e-WriterPro, and then program the code to the MCU.

PRODUCT FEATURES
  1. Input voltage: DC 9V to 26V
  2. Maximum DC bus current: 2.5A
  3. R_Shunt (Phase): 0.1Ω/2512/1%
  4. Bus voltage divider ratio: 1/6.00
  5. Gate-driver polarity
    - Low side active high
    - High side active high
  6. Product includes: power board x1, MCU adaptor x4, motor x1, Nylon hexagon post x4

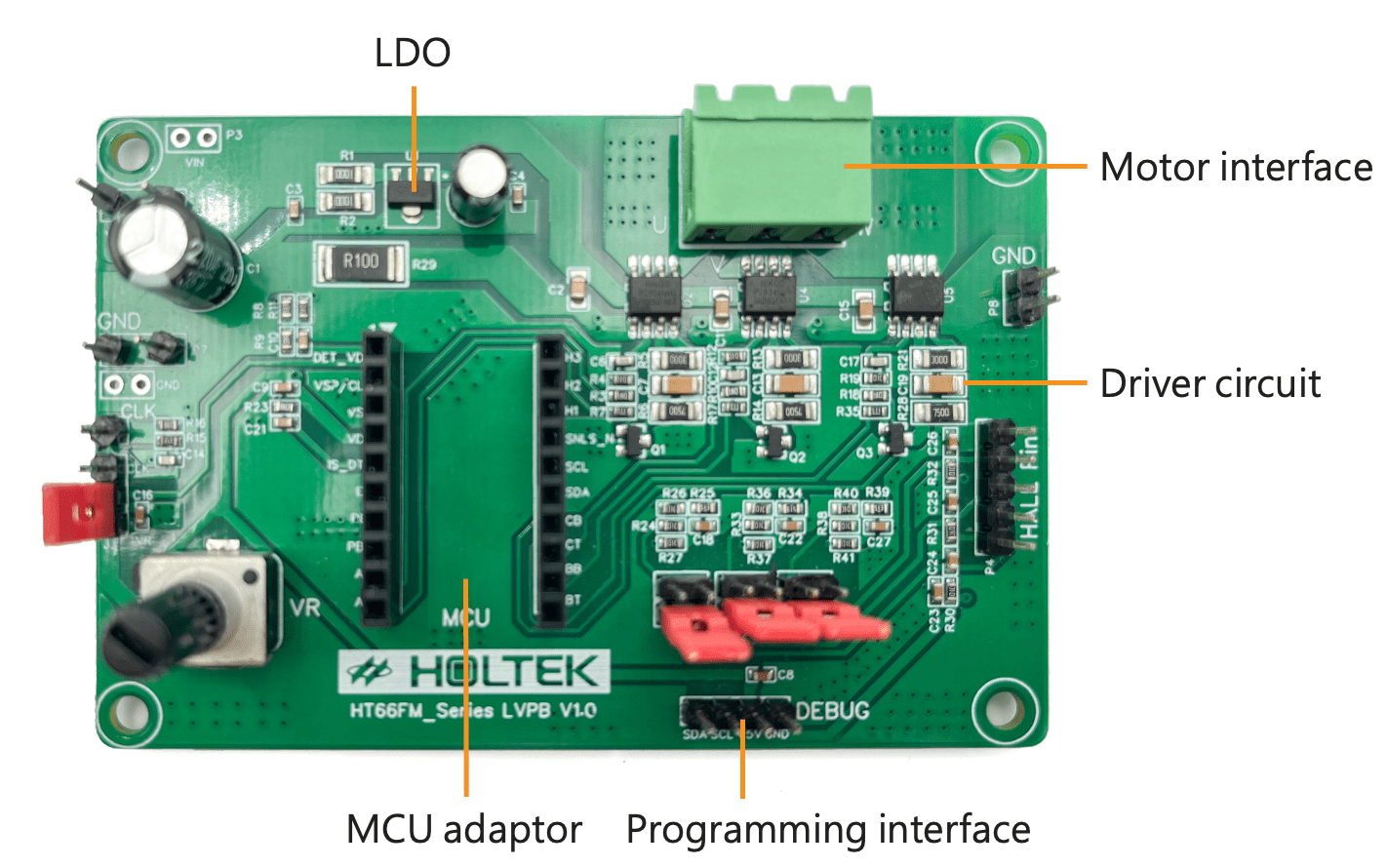

HARDWARE OVERVIEW
RESOURCES
  1. MCU: BD66FM5245 / BD66FM5252, BLDC Motor Flash MCU, including datasheet, package information, etc.
  2. MCU: HT66FM5440, Brushless DC Motor A/D Flash MCU, including datasheet, package information, etc.
Youtube
More Information
HS Code (reference) 8504.40.99.90-0
