BLDC Motor Workshop Development Board ESK-BLDCCFNS1201

US$45.00 (Excl. Tax)
In stock
Quantity
2 pieces
Product ID
ESK-BLDCCFNS1201

This product is a BLDC motor evaluation board (ESK-BLDCCFNS1201) based on the BD66EVM2441B MCU, specifically designed for single-phase BLDC cooling fan applications. In practical applications, you can connect this evaluation board to the e-LinkPro2 and the BLDC Motor Workshop for communication and parameter programming.

⬥ Please contact Holtek to obtain the BLDC Motor Workshop software.

Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
PRODUCT FEATURES
  1. Input Voltage: DC 6V~18V
  2. Maximum Motor Phase Current: 5A
  3. Phase Current Sampling Resistor (R_Shunt): 50mΩ/2512/1%/2W
  4. Integrated Functions: IC integrates 5V LDO and 36V P/N Gate-driver
  5. Application: Suitable for single-phase 12V cooling fan products
  6. Current Sampling Architecture: Resistor current sampling, supports hardware Overcurrent Protection (OCP) threshold setting
  7. Speed Control Input: Provides PWM signal and analog voltage (VSP) input methods
  8. Motor Control Feedback: Supports FG speed feedback output and provides Hall sensor (Hall Element and Hall Latch) mode selection interface
  9. Power Protection: Equipped with inrush current suppression components and reverse polarity protection diode
DEVELOPMENT ENVIRONMENT

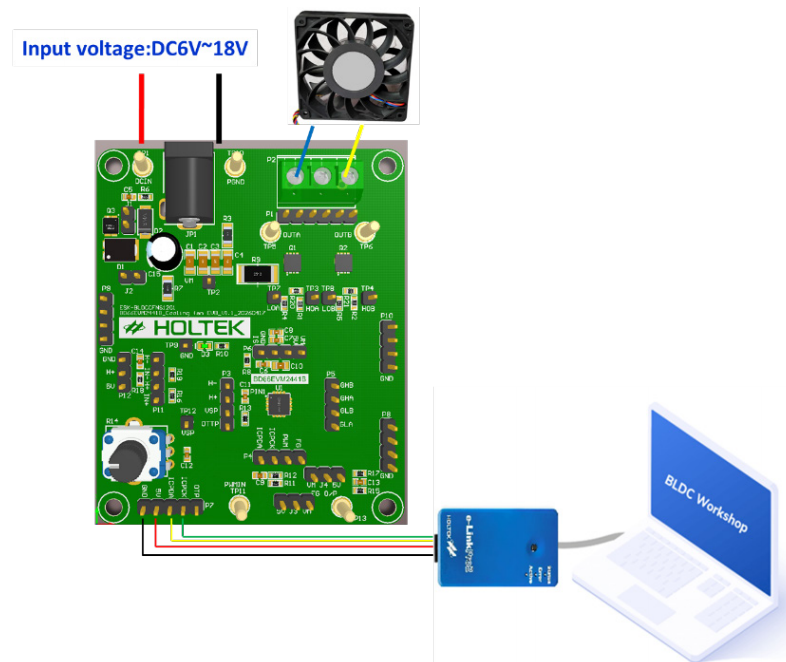

ESK-BLDCCFNS1201 Evaluation Board Development Environment
RESOURCES
  1. Development Platform: HT32 Series BLDC Motor Workshop

    2. The HT32F Series BLDC Motor Workshop provides complete hardware, algorithm libraries, and PC software to help users shorten BLDC motor product development time and lower the technical threshold for entering the BLDC motor product field.

File Icon User's Guide V1.00 (1.59 MB)
