This product is an adapter board for the 32-bit MCU HT32F66546G, specifically designed for BLDC motor development platforms. In practical applications, this adapter board can be used together with the HT32 N/N MOS Power Board and connected to the e-Link32 Pro and BLDC motor development platform for communication and development purposes.
⬥ Please contact Holtek to receive the BLDC Motor Workshop software.
Gate Driver Signal Polarity:
- Low-side Turn-on Polarity: Low Level
- High-side Turn-on Polarity: High Level

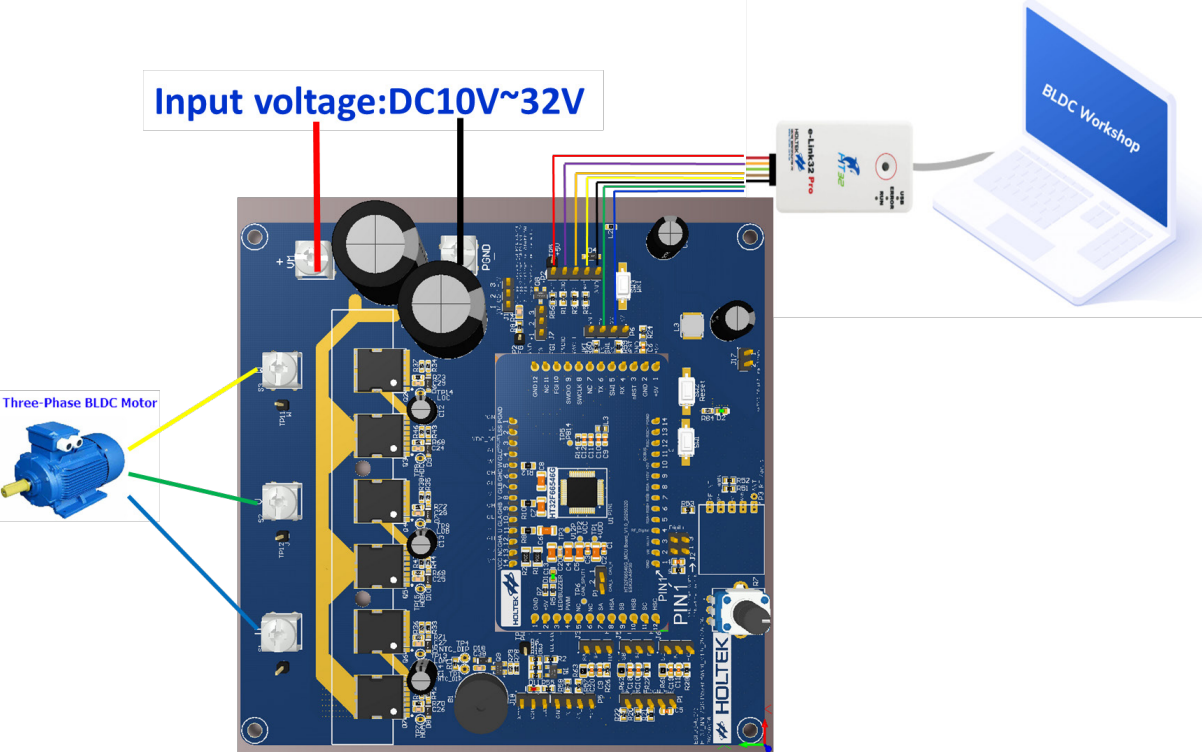

DEVELOPMENT ENVIRONMENT
RESOURCES
MCU: HT32F66546G, 32-Bit Arm® Cortex®-M0+ BLDC Motor MCU with 48 V Half-bridge N/N Gate-Driver, CORDIC and PID Engine, including datasheet, package information, etc.
The HT32F Series BLDC Motor Workshop provides a complete suite of hardware and software resources for BLDC Motor application development.
These resources include the FOC algorithm library as well as PC software, which helps users greatly reduce their three-phase BLDC Motor product development time and also significantly reduces the required technical threshold to enter the BLDC motor product field.
