Adaptor ESKT20QFN3C
US$107.00
(Excl. Tax)
In stock
Quantity
3
pieces
Product ID
ESKT20QFN3C
Description

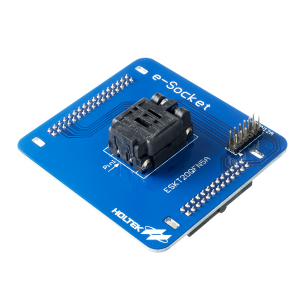

This adaptor is used to program Holtek 8-bit MCU with 20-pin QFN (Quad Flat No-lead) dimension 3mm x 3mm x 0.75mm package type. It must be used together with the Holtek e-WriterPro programmer. Note that 20-pin QFN package has three kinds of dimensions: 3mm x 3mm x 0.75mm, 4mm x 4mm x 0.75mm and 5mm x 5mm x 0.75mm. Please make sure the dimension before purchasing adaptor.
| 20-pin QFN package | Adaptor |
|---|---|
| Dimension 3mm x 3mm x 0.75mm | Adaptor ESKT20QFN3C |
| Dimension 4mm x 4mm x 0.75mm | Adaptor ESKT20QFN4A |
| Dimension 5mm x 5mm x 0.75mm | Adaptor ESKT20QFN5A |
To use this adaptor, insert it into the slot on the e-WriterPro. When placing IC into this adaptor, keep the IC pin1 to align with pin1 of this adaptor (marked on the PCB).
The adapter is a consumable. The suggested programming times is 5,000 times. When the adaptor has programmed over 5,000 times, the e-WriterPro will display a warning message. It is recommended to replace a new adaptor to ensure successful programming.
Product Information
- Dimensions: 76 x 70 x 25 (mm)
- Weight: 33.8g
- Packing List: Adaptor ESKT20QFN3C x 1
Resources
- Visit Holtek website e-Socket product page.
- Package Information (IC package diagrams and parameters)
| HS Code (reference) | 8504.40.20.00-3 |
|---|
