main product photo

32x4 LCD Controller IC HT1620 64LQFP

US$1.06 (Excl. Tax)
Out of stock
Product ID
HT1620-64LQFP
DESCRIPTION

The HT1620 is a RAM mapping 32x4 LCD controller. Only three or four lines are required for the interface between the host controller and the HT1620. The HT1620 consumes low operating current owing to adopting capacitor type bias charge pump.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.06
10-99 15% US$0.90
100-499 25% US$0.80
500-999 35% US$0.69
1000+ 40% US$0.64
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. Operating voltage: 2.4V~3.3V
  2. LCD voltage: 3.6V~4.9V
  3. Low operating current 3uA at 3V
  4. External 32.768kHz crystal oscillator
  5. Selection of 1/2 or 1/3 bias, and selection of 1/2 or 1/3 or 1/4 duty LCD applications
  6. Two selectable buzzer frequencies (2kHz/4kHz)
  7. Built-in capacitor type bias charge pump
  8. 32x4 LCD driver
  9. Built-in 32x4-bit display RAM

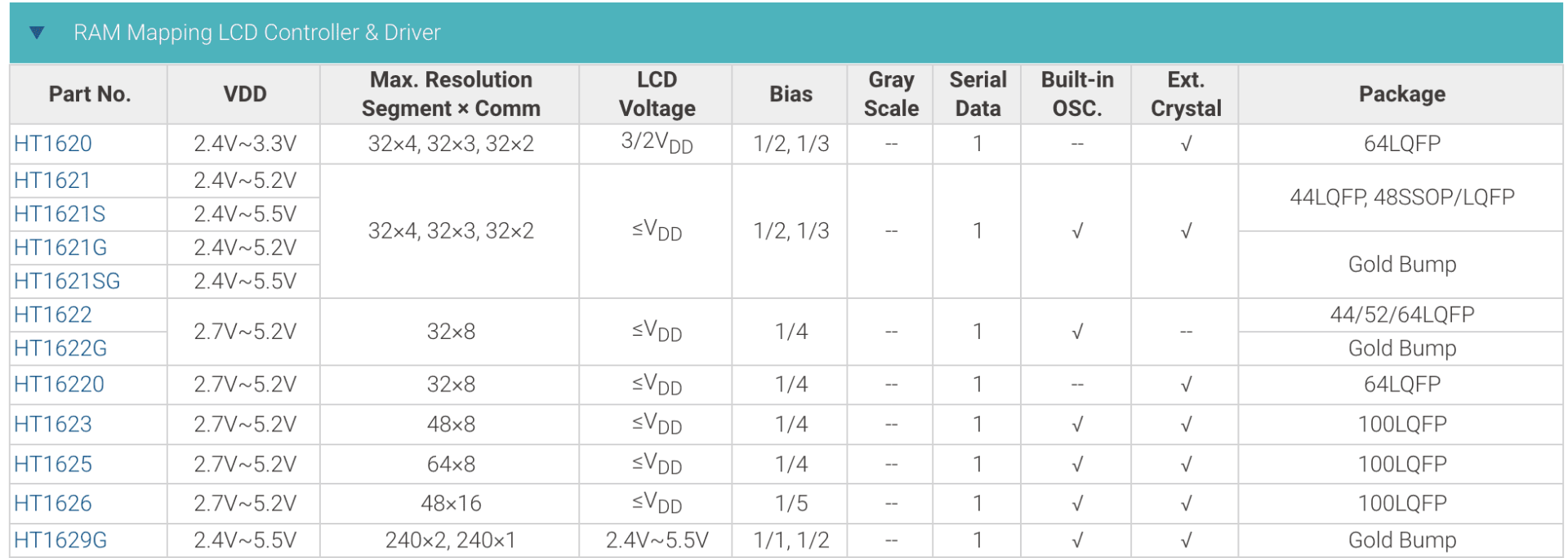

PRODUCT SERIES
RESOURCES
  1. IC: Holtek HT1620, RAM Mapping 32x4 LCD Controller for I/O MCU, including datasheet, package dimension, etc.
File Icon Datasheet V2.10 (127.00 kB)
More Information
HS Code (reference) 8542.39.00.22-8
