60×16 LCD Controller IC HT16H25 100LQFP

US$1.42
In stock
Quantity
1 pieces
Product ID
HT16H25-100LQFP

HT16H25 is a RAM Mapping 60x16 LCD Controller Driver. It can control up to 960 patterns in a 16COM by 60SEG format and supports a selectable frame rate ranging from 50Hz to 300Hz. The HT16H25 is suitable for applications such as exercise equipment, vehicle instruments, POS machines, industrial panels and other similar applications.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.
Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.42
10-99 15% US$1.21
100-499 25% US$1.07
500+ 35% US$0.92
For more quantity discounts please contact us
Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!

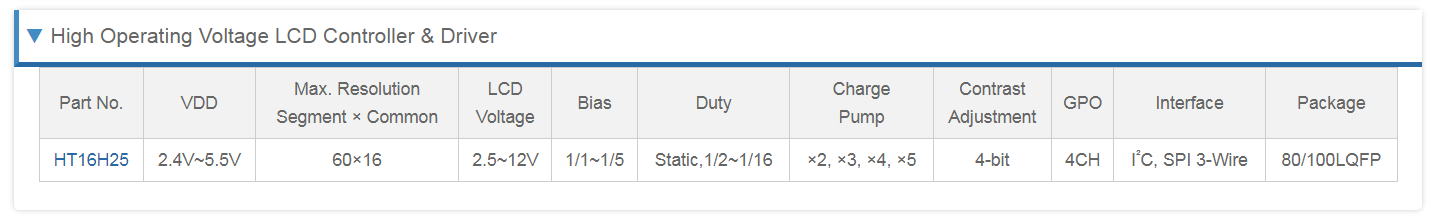

FEATURES
  1. Operating voltage: 2.4V~5.5V
  2. Internal RC oscillator
  3. LCD display: Max. 60 segments and 16 commons
  4. LCD display data RAM: 120×8 bits=960 bits
  5. Support I2C-bus or SPI 3-wire serial interface
RESOURCES
  1. IC: Holtek HT16H25, RAM Mapping 60×16 LCD Controller Driver, including datasheet, package dimension, etc.
