main product photo

HT32F12345 64LQFP

US$2.13 (Excl. Tax)
Out of stock
Product ID
HT32F12345-64LQFP

The HT32F12345 is Arm® Cortex®-M3 based 32-bit advanced Flash Microcontroller devices. It includes a high operating speed of up to 96MHz and is suitable for a wide range of applications such as white goods application control, power monitors, alarm systems, consumer products, handheld equipment, data logging applications, motor control, fingerprint recognition and so on.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$2.13
10-99 15% US$1.81
100-499 25% US$1.60
500+ 35% US$1.38
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. 32-bit Arm®Cortex®-M3 processor core
  2. Up to 96 MHz operating frequency
  3. 24-bit SysTick timer
  4. 64 KB on-chip Flash memory for instruction/data and option storage
  5. 16 KB on-chip SRAM
  6. Single VDD power supply: 2.0V~3.6V
  7. Integrated 1.5V LDO regulator for CPU core, peripherals and memories power supply

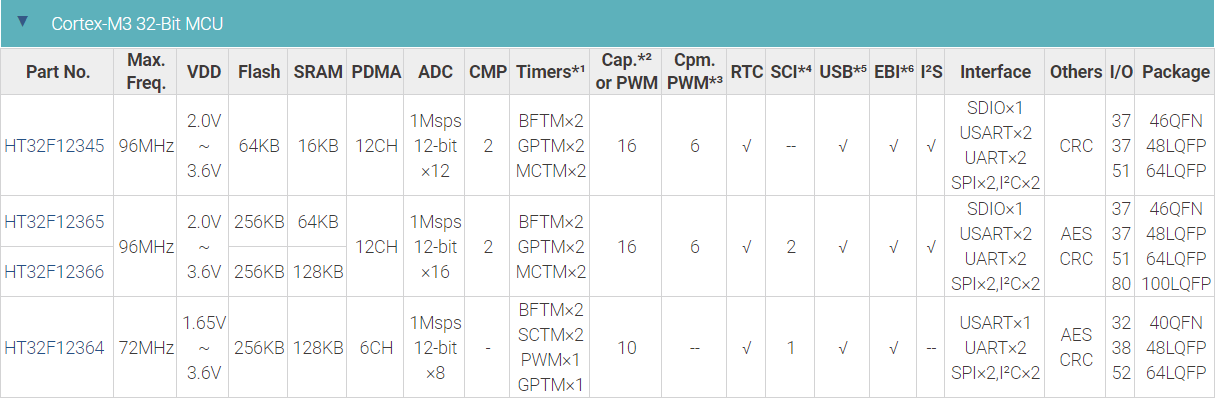

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Integrated Serial Wire Debug Port (SW-DP)
  2. Support ISP (In-System Programming), IAP (In-Application Programming), ICP (In-Circuit Programming)
  3. Debug Adapter : e-Link32 Pro
  4. Development Environment : Keil uVision, IAR EWARM
RESOURCES
  1. MCU : Holtek HT32F12345, 32-Bit Arm®Cortex®-M3 MCU, including datasheet, package dimension, etc.
File Icon Datasheet V1.40 (1.15 MB)
More Information
HS Code (reference) 8542.31.00.00-2
