main product photo

HT32F54231 48LQFP

US$1.45 (Excl. Tax)
In stock
Quantity
200 pieces
Product ID
HT32F54231-48LQFP
DESCRIPTION

The HT32F54231 is a 32-Bit Arm® Cortex®-M0+ 5V Touch MCU that provides 24 touch keys. It has an operating frequency of up to 60MHz and includes an LED controller with an automatic scanning function. It is suitable for electrical products, such as air fryers, rice cookers, smart door locks, washing machine panels, etc.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.45
10-99 15% US$1.23
100-499 25% US$1.09
500+ 35% US$0.94
For more quantity discounts please contact us
Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. 32-bit Arm® Cortex®-M0+ processor core
  2. Up to 60 MHz operating frequency
  3. 32 KB on-chip Flash memory for instruction/data and options storage
  4. 4 KB on-chip SRAM
  5. Single VDD power supply: 2.5 V to 5.5 V
  6. Integrated 1.5 V LDO regulator for MCU core, peripherals, and memories power supply
  7. Supports 8-segment digital displays up to a maximum of 8
  8. Keys are organized into several groups, with each group known as a module
  9. Each module is a fully independent set of four Touch Keys and each Touch Key has its own oscillator
PRODUCT SERIES
DEVELOPMENT TOOL
  1. Integrated Serial Wire Debug Port (SW-DP)
  2. Support ISP (In-System Programming), IAP (In-Application Programming), ICP (In-Circuit Programming)
  3. Debug Adapter : e-Link32 Pro
  4. Development Environment : Keil uVision, IAR EWARM
RESOURCES
  1. MCU: Holtek HT32F54231, 32-Bit Arm® Cortex®-M0+ 5V Touch MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.00.00-2
Related Products

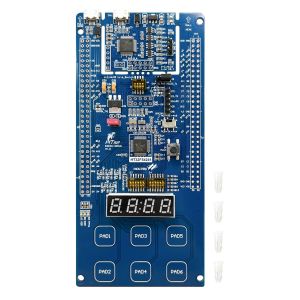

HT32F54241 Starter Kit ESK32-30518
