HT32F5828 48LQFP

US$1.66
In stock
Quantity
200 pieces
Product ID
HT32F5828-48LQFP
DESCRIPTION

The HT32F5828 is a high performance, low power consumption 32-bit microcontroller based around an Arm® Cortex®-M0+ processor core. It is suitable for various environmental data logging applications, such as temperature and humidity monitoring in cold chain transportation, refrigerated cabinets or warehouses, etc.,.

The HT32F5828 contains a 128K-byte Flash Program memory, a 16K-byte SRAM memory and has an operating voltage range of 1.65V~3.6V. The current consumption in the Power Down mode can be as low as 1.30μA, a low power feature which will result in increased battery life. In addition, the device supports an LCD display capability of 33 SEGs × 8 COMs.

To implement PDF data logger application requirements, Holtek provides dedicated libraries for PDF file generation and functions which also support multi-language development, PDF/A standard and encryption formats. These features come together to ensure the rapid generation of the required PDF file types.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.66
10-99 15% US$1.41
100-499 25% US$1.25
500+ 35% US$1.08
For more quantity discounts please contact us
Follow Us for More Updates!

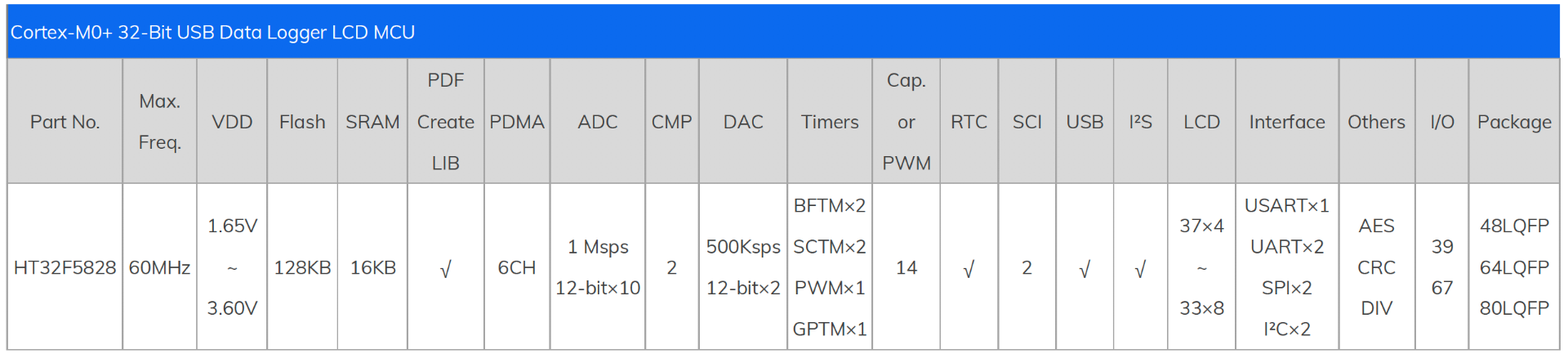

FEATURES
  1. 32-bit Arm® Cortex®-M0+ processor core
  2. Up to 60 MHz operating frequency
  3. Integrated Nested Vectored Interrupt Controller (NVIC)
  4. 24-bit SysTick timer
  5. Up to 128 KB on-chip Flash memory for instruction / data and options storage
  6. Up to 16 KB on-chip SRAM
  7. 32-bit word programming with In System Programming Interface (ISP) and In Application Programming (IAP)

DEVELOPMENT TOOL
  1. Integrated Serial Wire Debug Port (SW-DP)
  2. Support ISP (In-System Programming), IAP (In-Application Programming), ICP (In-Circuit Programming)
  3. Debug Adapter : e-Link32 Pro
  4. Development Environment : Keil uVision, IAR EWARM
RESOURCES
  1. MCU : Holtek HT32F5828, 32-Bit Arm® Cortex®-M0+ MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.0000
