main product photo

HT32F65232 48LQFP

US$1.16 (Excl. Tax)
In stock
Quantity
730 pieces
Product ID
HT32F65232-48LQFP
DESCRIPTION

The HT32F65232 is an Arm® Cortex®-M0+ Brushless DC motor MCU. It has an operating frequency of up to 60MHz and a wide operating voltage range of 2.5V~5.5V.

When the system voltage is 5V, the HT32F65232 can provide higher analog signal resolution and less noise interference when driving motors. It's suitable for applications of electric scooters, kitchen ventilators, vacuum cleaners, pumps, fans, etc.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.16
10-99 15% US$0.99
100-499 25% US$0.87
500+ 35% US$0.75
For more quantity discounts please contact us
Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. 32-bit Arm® Cortex®-M0+ processor core
  2. Up to 60 MHz operating frequency
  3. 24-bit SysTick timer
  4. Single VDD power supply: 2.5 V to 5.5 V
  5. Integrated 1.5 V LDO regulator for MCU core, peripherals and memories power supply
  6. Motor Control Timer – MCTM

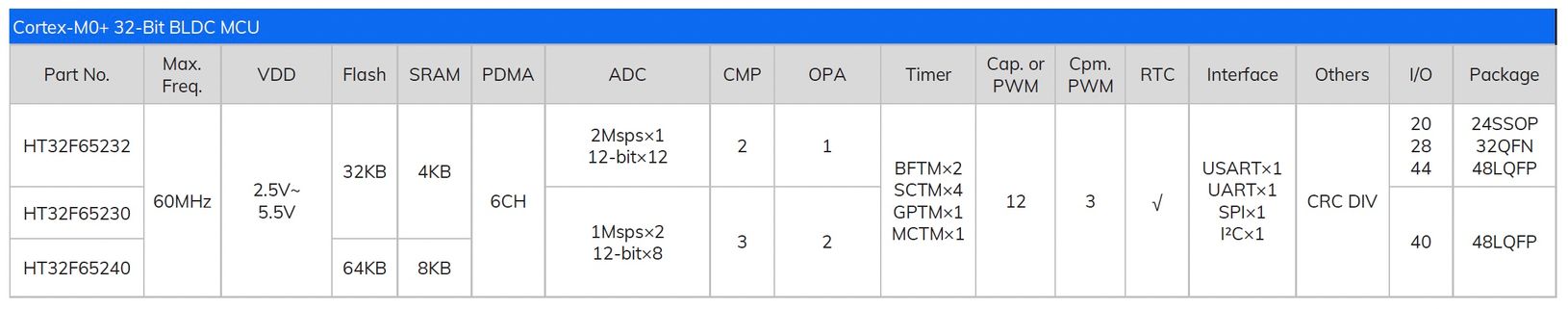

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Integrated Serial Wire Debug Port (SW-DP)
  2. Support ISP (In-System Programming), IAP (In-Application Programming), ICP (In-Circuit Programming)
  3. Debug Adapter : e-Link32 Pro
  4. Development Environment : Keil uVision, IAR EWARM
RESOURCES
  1. MCU : Holtek HT32F65232, 32-Bit Arm® Cortex®-M0+ MCU, including datasheet, package dimension, etc.
File Icon Datasheet V1.10 (1.05 MB)
More Information
HS Code (reference) 8542.31.00.00-2
