HT67F5660 80LQFP

US$2.27 (Excl. Tax)
Out of stock
Product ID
HT67F5660-80LQFP
DESCRIPTION

The HT67F5660 is an 8-bit MCU with multi-channel 24-bit Delta Sigma A/D converter and fully integrated LCD driver. The inclusion of flexible I/O programming features, a fully integrated LCD driver and Time-Base functions along with many other features ensure that the devices will find excellent use in applications such as weight scales, electronic metering, environmental monitoring, handheld instruments, household appliances, electronically controlled tools, motor driving in addition to many others.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$2.27
10-99 15% US$1.93
100-499 25% US$1.70
500+ 35% US$1.48
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. Operating Voltage: 2.2V~5.5V
  2. Flash Program Memory: 16Kx16
  3. RAM Data Memory: 1024x8
  4. True EEPROM Memory: 256x8
  5. Up to 0.2us instruction cycle with 20MHz system clock at VDD =5V
  6. Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
  7. 115 powerful instructions
  8. 8-level subroutine nesting
  9. LCD COM driver with 1/3 bias
  10. Up to 32 bidirectional I/O lines
  11. Serial Interfaces Module - SIM for SPI or I2C
  12. UART with IR carrier

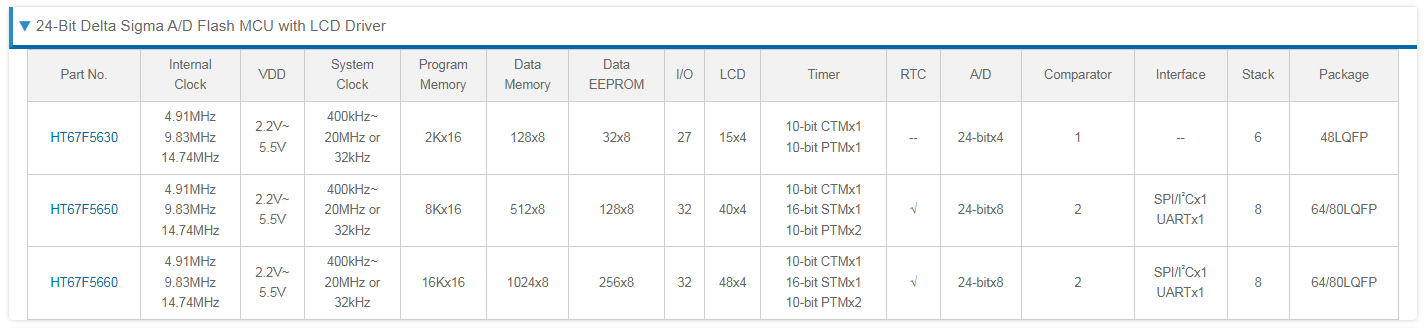

PRODUCT SERIES
RESOURCES
  1. MCU: Holtek HT67F5660, 24-Bit Delta Sigma A/D + LCD Flash MCU, including datasheet, package dimension, etc.
