30mA LDO HT7133-2 SOT23-5 (10 pieces)

US$1.24
In stock
Quantity
100 sets (1 set = 10 pieces)
Product ID
HT7133-2-SOT23-5
DESCRIPTION

The HT71xx-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

The output voltage of HT7133-2 is 3.3V.

NOTE
  1. Each purchasing unit includes 10 pieces of IC.
  2. The product image is for showing the product appearance, the pin count shown may not match the product pin count.
  3. The MOQ of tape and reel is 3000 pieces.
    Please feel free to contact us if needed.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.24
10-99 15% US$1.05
100-499 25% US$0.93
500+ 35% US$0.81
For more quantity discounts please contact us
Follow Us for More Updates!
FEATURES
  1. Low power consumption
  2. Low voltage drop
  3. Low temperature coefficient
  4. High input voltage (up to 30V)
  5. Quiescent current 2.5µA
  6. Output current : 30mA
  7. Output voltage accuracy: ±1%

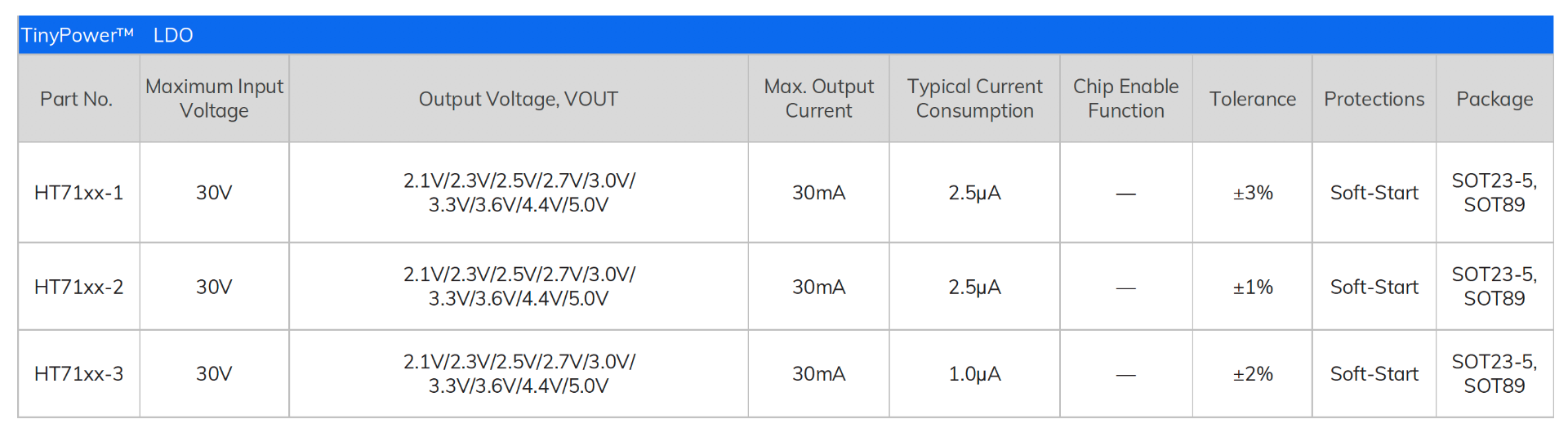

PRODUCT SERIES
RESOURCES
  1. IC : Holtek HT71xx-2, 30mA TinyPower™ LDO, including datasheet, package dimension, etc.
  2. Application Note : AN0553, Application Guideline for HT75xx-1/-2/-3,HT71xx-1/-2/-3, HT72xx, HT78xx, HT73xx
Datasheet V1.50 (408.99 kB)
More Information
HS Code (reference) 8542.39.00.22-8
