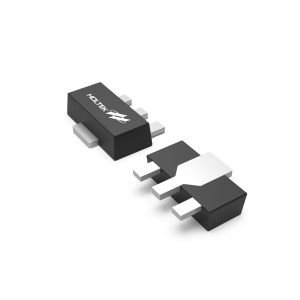

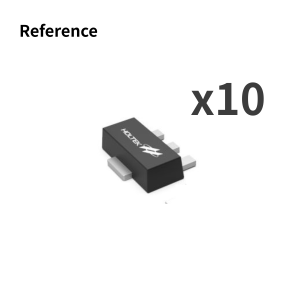

100mA LDO HT7533-7 SOT89 (10 pieces)

US$1.45
In stock
Quantity
19 sets (1 set = 10 pieces)
Product ID
HT7533-7-SOT89
LDO HT7533-7 SOT89 (5 pieces)

Description

The HT75xx-7 is a low power high voltage series of regulators implemented in CMOS technology which has the advantages of low voltage drop and low quiescent current. They allow input voltage as high as 30V and are available with several fixed output voltages ranging from 2.1V to 12.0V.

When the CE input is low, a fast discharge path pulls the output voltage low via an internal pull-down resistor. An internal over-current protection circuit prevents the device from damage even if the output is shorted to ground. An over-temperature protection circuit ensures the device junction temperature will not exceed a temperature of 160°C.

The output voltage of HT7533-7 is 3.3V.

NOTE

  1. Each unit includes 10 pieces of IC.
  2. The product image is for showing the product appearance only. Please check document for detail package information.
  3. The MOQ of tape and reel is 1000 pieces.
    Please feel free to contact us if needed.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.45
10-99 15% US$1.23
100-499 25% US$1.09
500+ 35% US$0.94
For more quantity discounts please contact us
Follow Us for More Updates!
LDO HT7533-7 SOT89 (5 pieces)

Features

  1. Low power consumption
  2. Low voltage drop
  3. Low temperature coefficient
  4. High input voltage (up to 30V)
  5. Quiescent current 2.5µA
  6. High output current : 100mA
  7. Output voltage accuracy: tolerance ±2%
  8. Over current protection (OCP)
  9. Over temperature protection (OTP)
  10. Chip enable/disable function

Selection Table

LDO SeriesHT75xx-1HT75xx-2HT75xx-3HT75xx-7
Maximum Input Voltage30V30V30V30V
Typical Current Consumption 2.5µA 2.5µA 1.0µA 2.5µA
Chip Enable Function√ (SOT23-5 only)
Tolerance±3%±1%±2%±2%
ProtectionsSoft-StartSoft-StartSoft-StartSoft-Start, OCP, OTP

• Max. Output Current 100mA for Output Voltage 2.1V/2.3V/2.5V/2.7V/3.0V/3.3V/3.6V/4.0V/4.4V
• Max. Output Current 150mA for Output Voltage 5.0V/6.0V/7.0V/8.0V/9.0V/10.0V/12.0V

Resources

  1. IC: Holtek HT75xx-7, 30V, 100mA TinyPower™ LDO with Protections (including the latest datasheet, package information, etc.)
  2. Application Note: AN0553, Application Guideline for HT75xx-1/-2/-3,HT71xx-1/-2/-3, HT72xx, HT78xx, HT73xx
More Information
HS Code (reference) 8542.39.00.22-8
