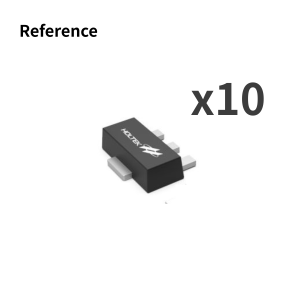

150mA LDO HT7550-1 SOT89 (10 pieces)

US$1.57 (Excl. Tax)

Out of stock

Product ID

HT7550-1-SOT89

LDO HT7550-1 SOT89 (5 pieces)

Description

The HT75xx-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They can deliver 100mA or 150mA output current and allow an input voltage as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 12.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

The output voltage of HT7550-1 is 5.0V.

NOTE

Each unit includes 10 pieces of IC.
The product image is for showing the product appearance only. Please check document for detail package information.
The MOQ of tape and reel is 1000 pieces.
Please feel free to contact us if needed.

Quantity Discounts refresh image

Select	Quantity	Discount	Unit price
	1-9	-	US$1.57
	10-99	15%	US$1.33
	100-499	25%	US$1.18
	500-999	35%	US$1.02
	1000+	40%	US$0.94

For more quantity discounts please contact us

Notify me when this product is in stock

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!

Spin Modules

LDO HT7550-1 SOT89 (5 pieces)

Features

Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 30V)
Quiescent current 2.5µA
High output current : 150mA
Output voltage accuracy: tolerance ±3%

Selection Table

LDO Series	HT75xx-1	HT75xx-2	HT75xx-3	HT75xx-7
Maximum Input Voltage	30V	30V	30V	30V
Typical Current Consumption	2.5µA	2.5µA	1.0µA	2.5µA
Chip Enable Function	–	–	–	√ (SOT23-5 only)
Tolerance	±3%	±1%	±2%	±2%
Protections	Soft-Start	Soft-Start	Soft-Start	Soft-Start, OCP, OTP

• Max. Output Current 100mA for Output Voltage 2.1V/2.3V/2.5V/2.7V/3.0V/3.3V/3.6V/4.0V/4.4V
• Max. Output Current 150mA for Output Voltage 5.0V/6.0V/7.0V/8.0V/9.0V/10.0V/12.0V

Resources

IC: Holtek HT75xx-1,100mA TinyPower™ LDO (including the latest datasheet, package information, etc.)
Application Note: AN0553, Application Guideline for HT75xx-1/-2/-3,HT71xx-1/-2/-3, HT72xx, HT78xx, HT73xx
