main product photo

150mA LDO HT75H50 SOT89 (10 pieces)

US$1.96 (Excl. Tax)
In stock
Quantity
14 sets (1 set = 10 pieces)
Product ID
HT75H50-SOT89
DESCRIPTION

The HT75H33 is a TinyPowerTM ultra low quiescent current LDO with output voltage 5.0V. It includes a high input voltage of 40V, ultra-low quiescent current of 2.5μA and a maximum output current value of 150mA (with an output voltage accuracy of ±1.5%). It provides over current and over temperature protection features. It also includes a chip enable pin. When pulling the pin to low, it can reduce the current consumption to 0.1μA.

NOTE
  1. Each purchasing unit includes 10 pieces of IC.
  2. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.96
10-99 15% US$1.67
100-499 25% US$1.47
500+ 35% US$1.27
For more quantity discounts please contact us
Add to Wish List
Email
Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!
Follow Us for More Updates!
FEATURES
  1. Output voltage: 5.0V
  2. Low power consumption
  3. Low voltage drop
  4. Low temperature coefficient
  5. High input voltage (up to 40V)
  6. Output voltage accuracy: tolerance ±1.5%
  7. Over current / Over temperature protection
RESOURCES

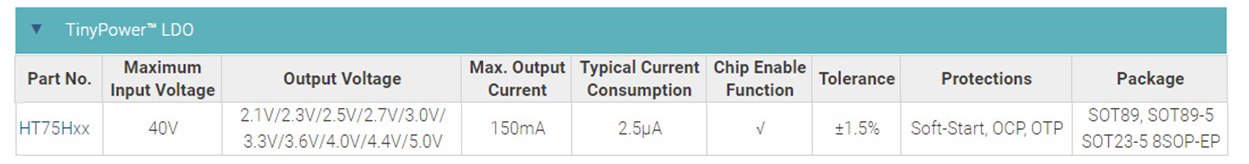

  1. IC: Holtek HT75H33, 40V, 150mA TinyPowerTM LDO with protections, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.39.00.22-8
