OP Amplifier HT9291 SOT23-5 (10 pieces)

US$1.42
In stock
Quantity
100 sets (1 set = 10 pieces)
Product ID
HT9291-SOT23-5
DESCRIPTION

The HT9291 is a low power operation amplifier. It provides single supply voltage down to as low as 1.4V as well as an extremely low quiescent current of only 0.6uA / amplifier. It is suitable for battery powered products and portable applications.

The HT9291 is rail-to-rail voltage operation for maximum range. In possessing a 11kHz of gain-bandwidth product and unity gain stability, the HT9291 provides for extensive usage in lower frequency applications such as battery current detection and sensor signal processing.

NOTE
  1. Each purchasing unit includes 10 pieces of IC.
  2. The product image is for showing the product appearance, the pin count shown may not match the product pin count.
  3. The MOQ of tape and reel is 3000 pieces.
    Please feel free to contact us if needed.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.42
10-99 15% US$1.21
100-499 25% US$1.07
500+ 35% US$0.92
For more quantity discounts please contact us
Follow Us for More Updates!
FEATURES
  1. Wide operating voltage : 1.4V to 5.5V
  2. Low quiescent current : typical 0.6uA / amplifier
  3. Rail-to-Rail output
  4. Gain bandwidth : 11kHz typical
  5. Unity gain stable
  6. Available in Single, Dual and Quad OP's package types

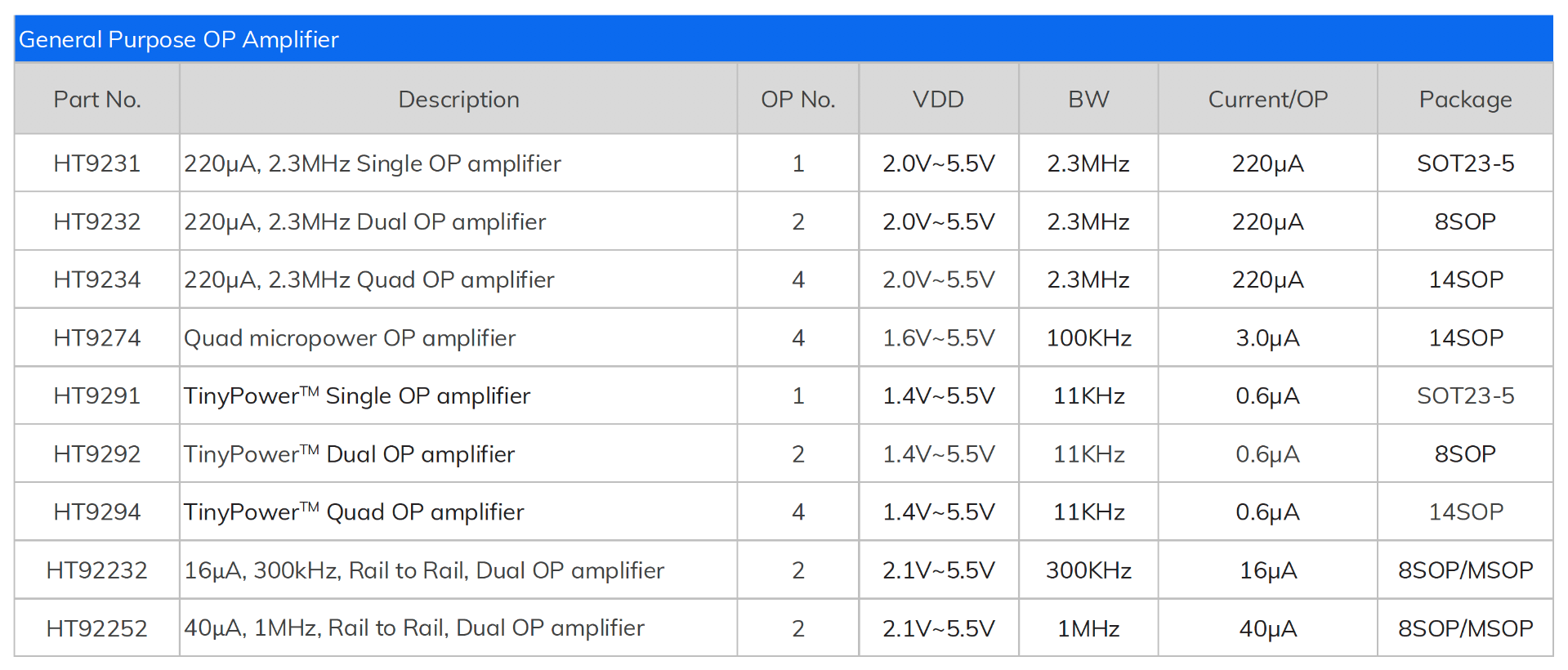

PRODUCT SERIES
RESOURCES
  1. IC : Holtek HT9291, TinyPowerTM Operation Amplifier, including datasheet, package dimension, etc.
Datasheet V1.30 (386.72 kB)
More Information
HS Code (reference) 8542.33.0000
