【EOL】36×4 LCD Controller IC HT9B92 48LQFP

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

【EOL】36×4 LCD Controller IC HT9B92 48LQFP

US$0.73

Out of stock

Product ID

HT9B92-48LQFP

Note: This product has been discontinued and will not be restocked once sold out.

Notify me when this product is in stock

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!

Spin Modules

Follow Us for More Updates!

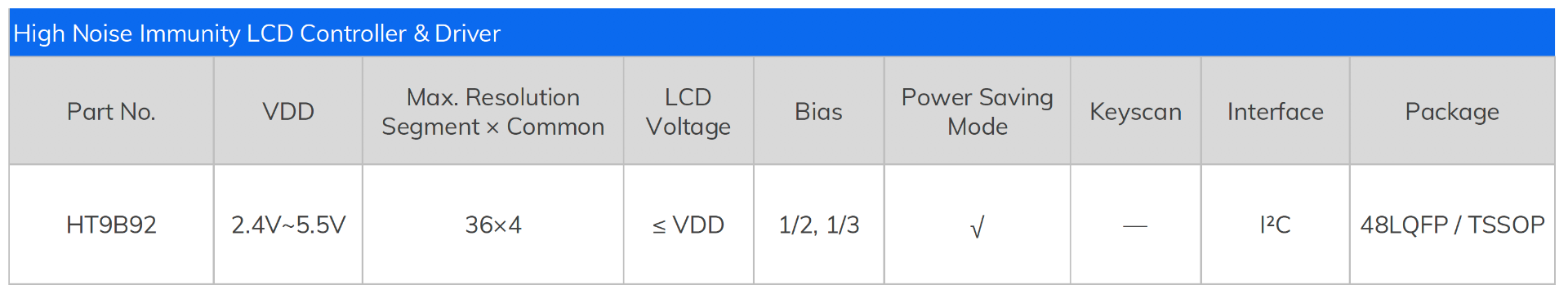

FEATURES

Logic Operating Voltage : 2.4V~5.5V
Bias : 1/2 or 1/3 ; Duty : 1/4
Internal LCD bias generation with voltage-follower buffers
External VLCD pin to supply LCD operating voltage
Support I²C bus serial interface
Selectable LCD Frame Frequencies
Up to 36x4 bits RAM for display data storage
Maximum Display patterns : 36x4 patterns - 36 segments and 4 commons
Versatile blinking modes : off, 0.5Hz, 1Hz, 2Hz

RESOURCES

MCU : Holtek HT9B92, RAM Mapping 36x4 LCD Driver , including datasheet, package dimension, etc.

More Information
HS Code (reference)	8542.39.00.22-8
