BA45F6756 48LQFP

US$0.96
Out of stock
Product ID
BA45F6756-48LQFP
DESCRIPTION

The BA45F6756 is a Holtek 8-bit CO/GAS detector Flash MCU with LCD/LED driver. It includes a temperature sensor with multi-channel A/D converter, an operational amplifier and a D/A converter. It also includes SPI / I2C / UART interfaces and fully integrated LCD driver function.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$0.96
10-99 15% US$0.82
100-499 25% US$0.72
500+ 35% US$0.62
For more quantity discounts please contact us
Add to Wish List
Email
Notify me when this product is in stock
Follow Us for More Updates!
FEATURES
  1. Operating voltage: 2.2V~5.5V
  2. Internal LDO provides fixed 2.2V / 2.5V / 3.0V output
  3. CO / Gas detector AFE including an operational amplifier
  4. 8 external channel 12-bit resolution A/D converter with internal reference voltage VBGREF
  5. Temperature Sensor with internal reference voltage
  6. Universal Serial Interface Module – USIM for SPI, I2C or UART communication
  7. 16-bit Voice D/A converter
  8. LCD Driver function
    - SEG × COM：16×4
    - Duty type: 1/4 duty
    - Bias level: 1/3 bias
    - Bias type: R type or C type
    - Waveform type: type A or type B

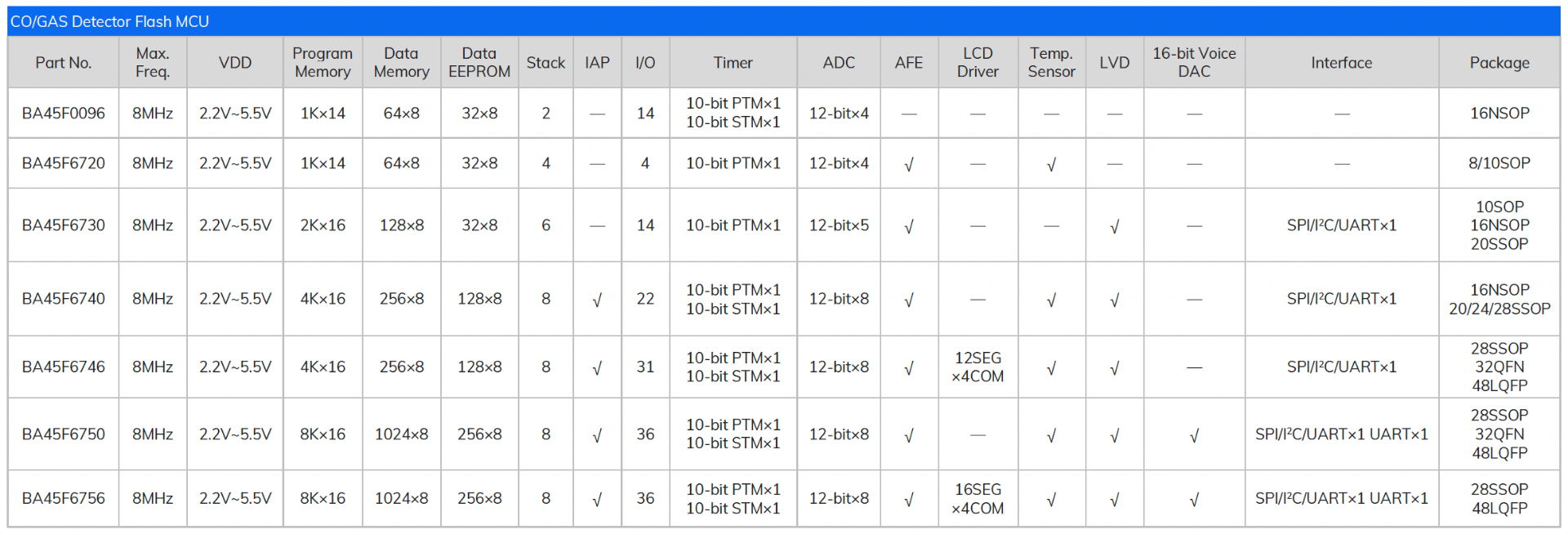

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Debug Adapter : e-Link
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU : Holtek BA45F6756, CO/GAS Detector Flash MCU with LCD/LED Driver , including datasheet, package dimension, etc.
  2. Application note : AN0575EN, BA45F67xx Calendar Application Note.
  3. Application note : AN0564EN, BA45F67xx Gas Detector Application Note.
Datasheet V1.11 (3.39 MB)
More Information
HS Code (reference) 8542.31.0000
