Use with e-Link debug adaptor and HT-IDE3000 software for code debugging
Use e-Link or e-WriterPro for MCU programming
Preloaded LED breathing light demo code, easy to check board

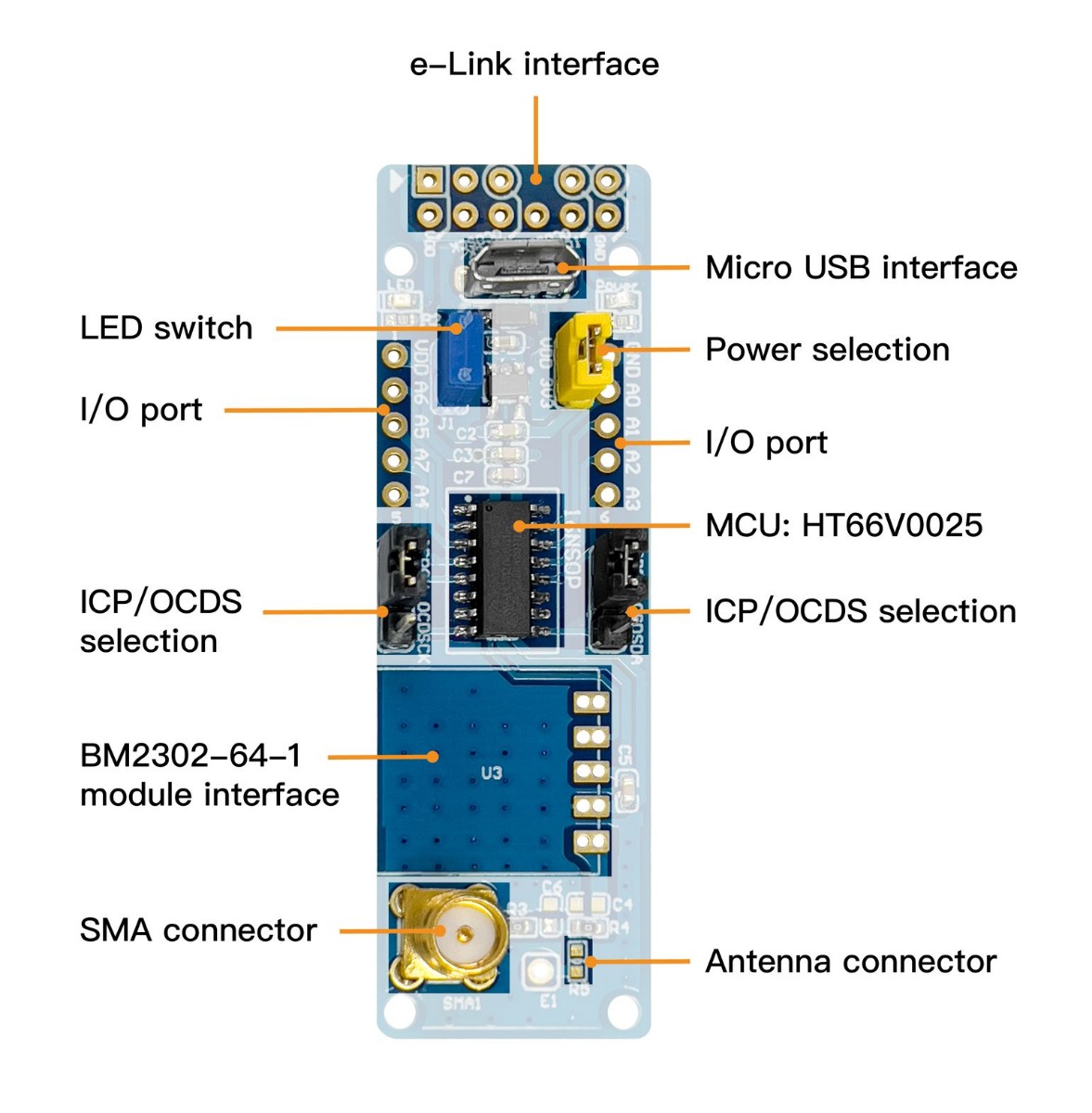

HARDWARE OVERVIEW
If you intend to use SMA connector, select the 50Ω impedance antenna.
Power selection
Micro USB: select 3.3V or 5V power via the yellow jumper.
e-Link: users can set the voltage value on the Holtek HT-IDE3000 software.
The red LED indicator lights on after power-on.
DEVELOPMENT ENVIRONMENT
Debugging: move the jumpers to OCDSDA and
OCDSCK, and connect the board to e-Link. Open the HT-IDE3000 software to debug code.
Programming: move the jumpers to ICPDA and ICPCK , and connect the board to e-Link. Open HOPE3000 for e-Link software to program MCU.
Alternatively, users can place the board on the adapter ESKT40DIPC and program MCU by e-WriterPro.
RESOURCES
Module: BM2302-6x-1, Low-IF OOK Receiver Module, including datasheet, etc.
MCU: BC66F2332, Sub-1GHz Low-IF OOK RF Receiver Flash MCU, including datasheet, package information, etc.
MCU: HT66F0025, Cost-Effective A/D Flash MCU with EEPROM, including datasheet, package information, etc.
