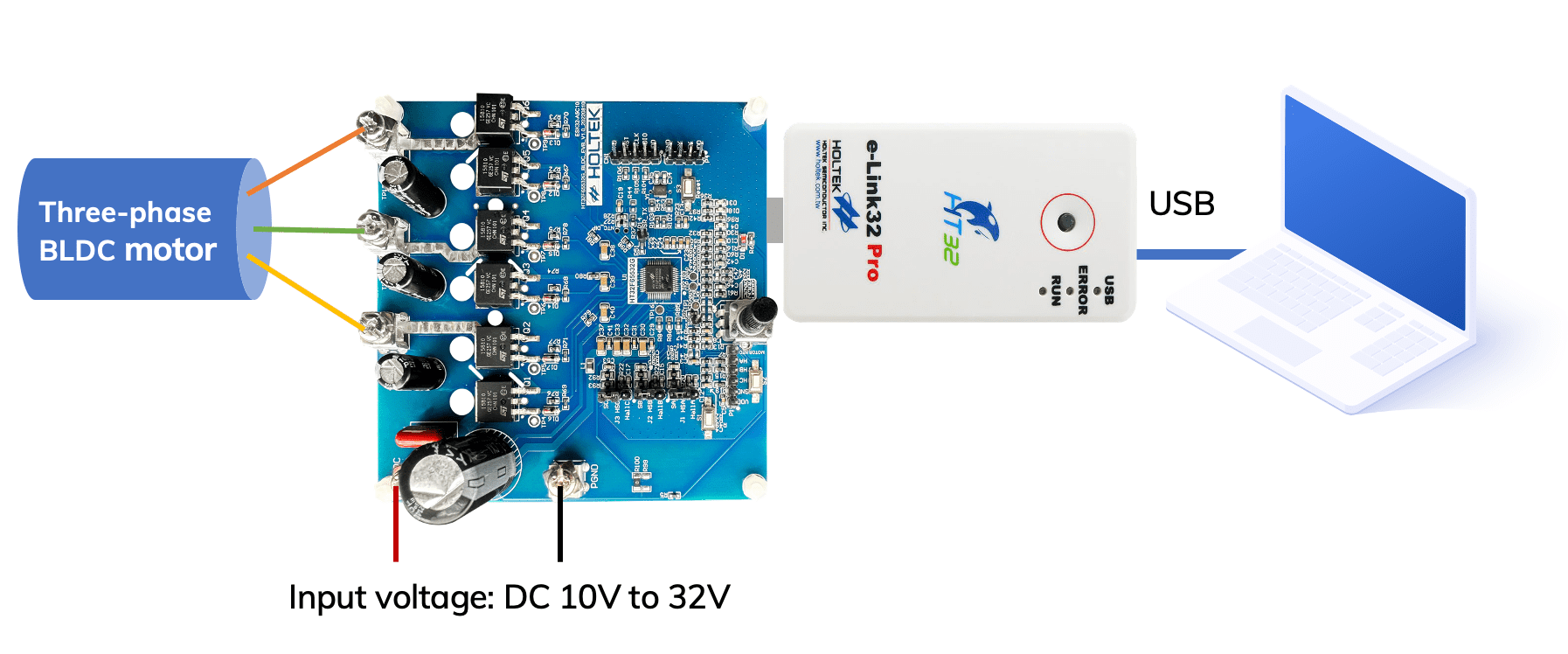

The ESK32-A5C10 is a development board dedicated designed for BLDC. It has a built-in Holtek 32-bit BLDC MCU, the HT32F65532G, and need to use with the e-Link32 Pro.
Holtek provides the development platform, BLDC Motor Workshop. You can set multiple parameters on the workshop and then generate the program codes. BLDC Motor Workshop provides a real-time graphical display without an oscilloscope.
NOTE
Please contact Holtek to get the BLDC Motor Workshop development platform software.
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
PRODUCT FEATURES
Input voltage: DC 10V~32V
Maximum DC Bus current: 20A
Maximum motor phase current: 22A
R_Shunt (Phase): 0.05Ω/2512/1%/2W
DC Bus voltage divider ratio: 1/16.00
Gate-driver polarity
- Low side active low
- High side active high
Has a built-in 32-Bit Arm® Cortex®-M0+ BLDC MCU, the HT32F65532G
Product information
Dimension: 100 x 100 x 28 mm
Net Weight: 77.4g

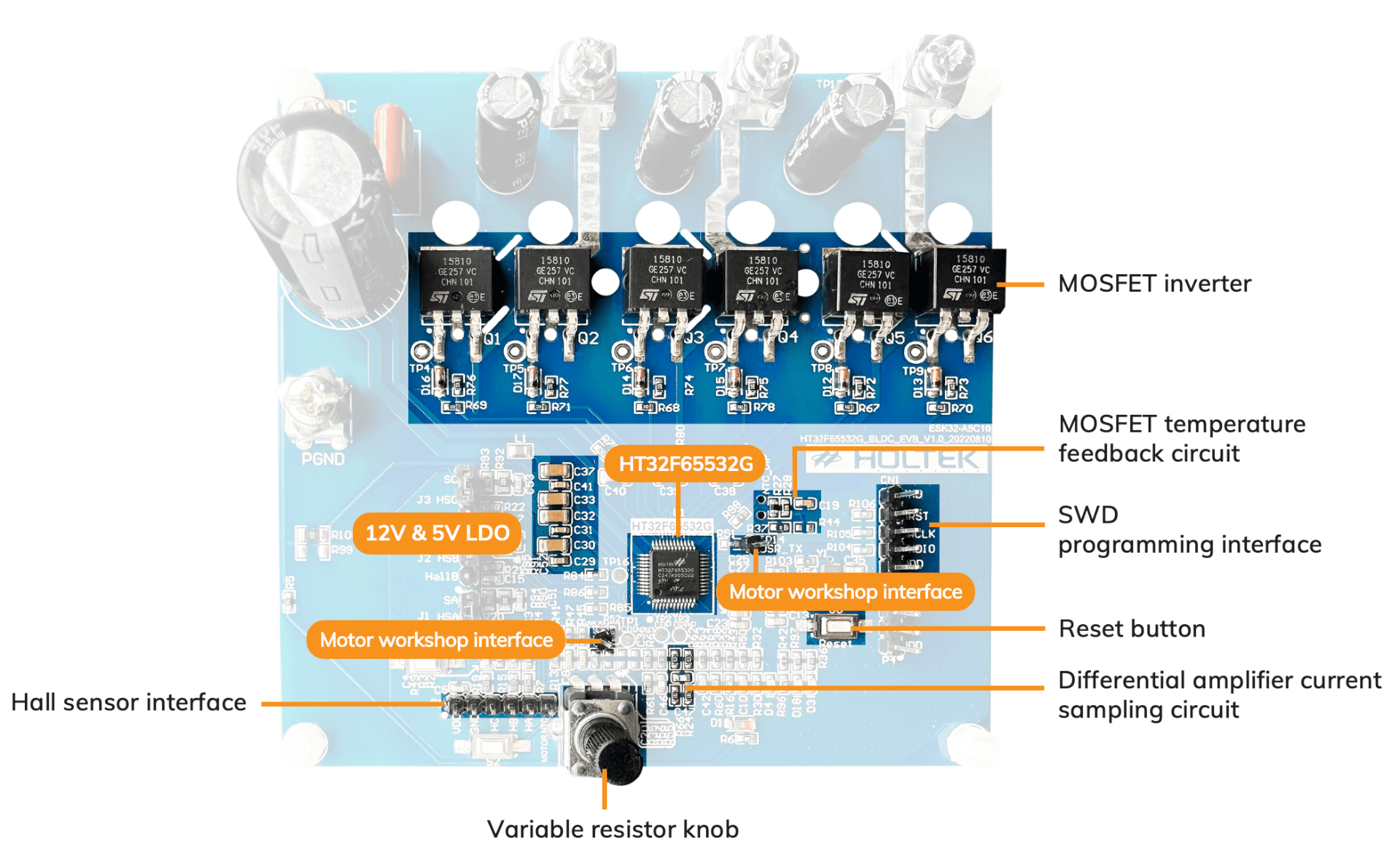

HARDWARE OVERVIEW
DEVELOPMENT ENVIRONMENT
RESOURCES
MCU: HT32F65532G, 32-Bit Arm® Cortex®-M0+ BLDC MCU with 3-channel 48V Half-bridge Gate-Driver, including datasheet, package information, etc.
