BLDC Motor Workshop HT32F65432A MCU Adaptor ESK32-A5D30

US$20.00

In stock

Quantity

Product ID

ESK32-A5D30

The product is an adaptor for the 32-bit MCU HT32F65432A, specifically designed for the BLDC motor workshop. There is a slot on the power board, ESK32-A5040. You can directly insert the adaptor into the slot and then connect it to the e-Link32Pro and the BLDC motor workshop.

⬥ Please contact Holtek to receive the BLDC Motor Workshop software.

Looking for our Official Distributor in India?
Order directly from SPIN MODULES -
local shipping and INR payment available!

Spin Modules

FEATURES

Input voltage: DC 10V~32V
Maximum DC Bus current: 2A
Maximum motor phase current: ±6.667A
R_Shunt (Phase): 0.05Ω/2512/1%/2W
DC Bus voltage divider ratio: 1/8.00
Gate-Driver Polarity:
- Low side: active low
- High side: active high
Dimension: 59 x 34 x 19 mm (including pin header)
Net weight: 10.94g

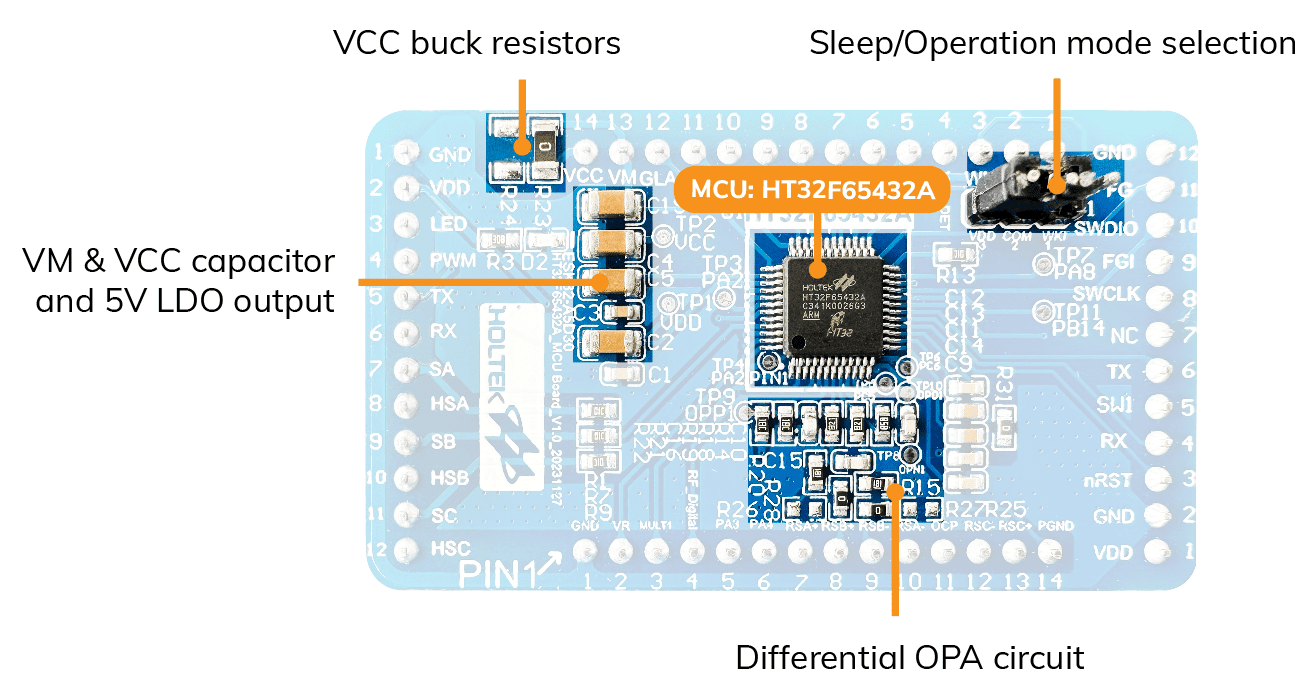

HARDWARE OVERVIEW

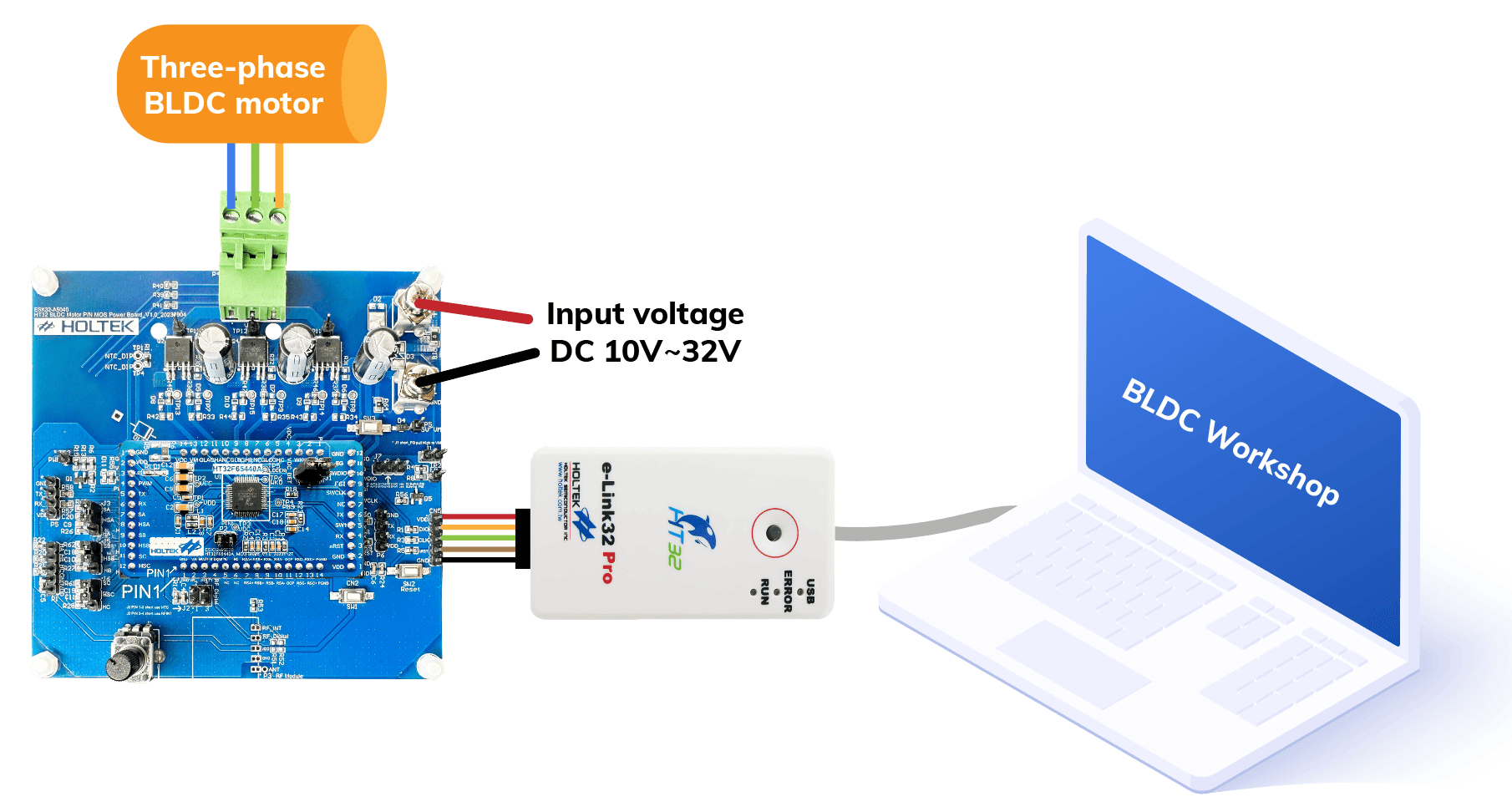

Development Environment

RESOURCES

MCU: HT32F65432A, 32-Bit Arm® Cortex®-M0+ BLDC MCU with 3-channel 36V P/N Gate-Driver, including datasheet, package information, etc.
Development Platform : HT32F Series BLDC Motor Workshop

The HT32F Series BLDC Motor Workshop provides a complete suite of hardware and software resources for BLDC Motor application development.
These resources include the FOC algorithm library as well as PC software, which helps users greatly reduce their three-phase BLDC Motor product development time and also significantly reduces the required technical threshold to enter the BLDC motor product field.
