The product is a power board dedicated designed for BLDC. It needs to be used with the BLDC MCU adaptor and the development platform, BLDC Motor Workshop.
You can configure multiple parameters on the BLDC Motor Workshop and then generate the program codes. The workshop also provides a real-time graphical display without an oscilloscope.
⬥ Please contact Holtek to receive the BLDC Motor Workshop software.
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
FEATURES
Input voltage: DC 10V~32V
Includes an MCU adaptor slot that supports multiple adaptors
Supports three-phase BLDC motors
Includes RF receiver module interface
Dimension: 100 x 100 x 36 mm
Net weight: 58g

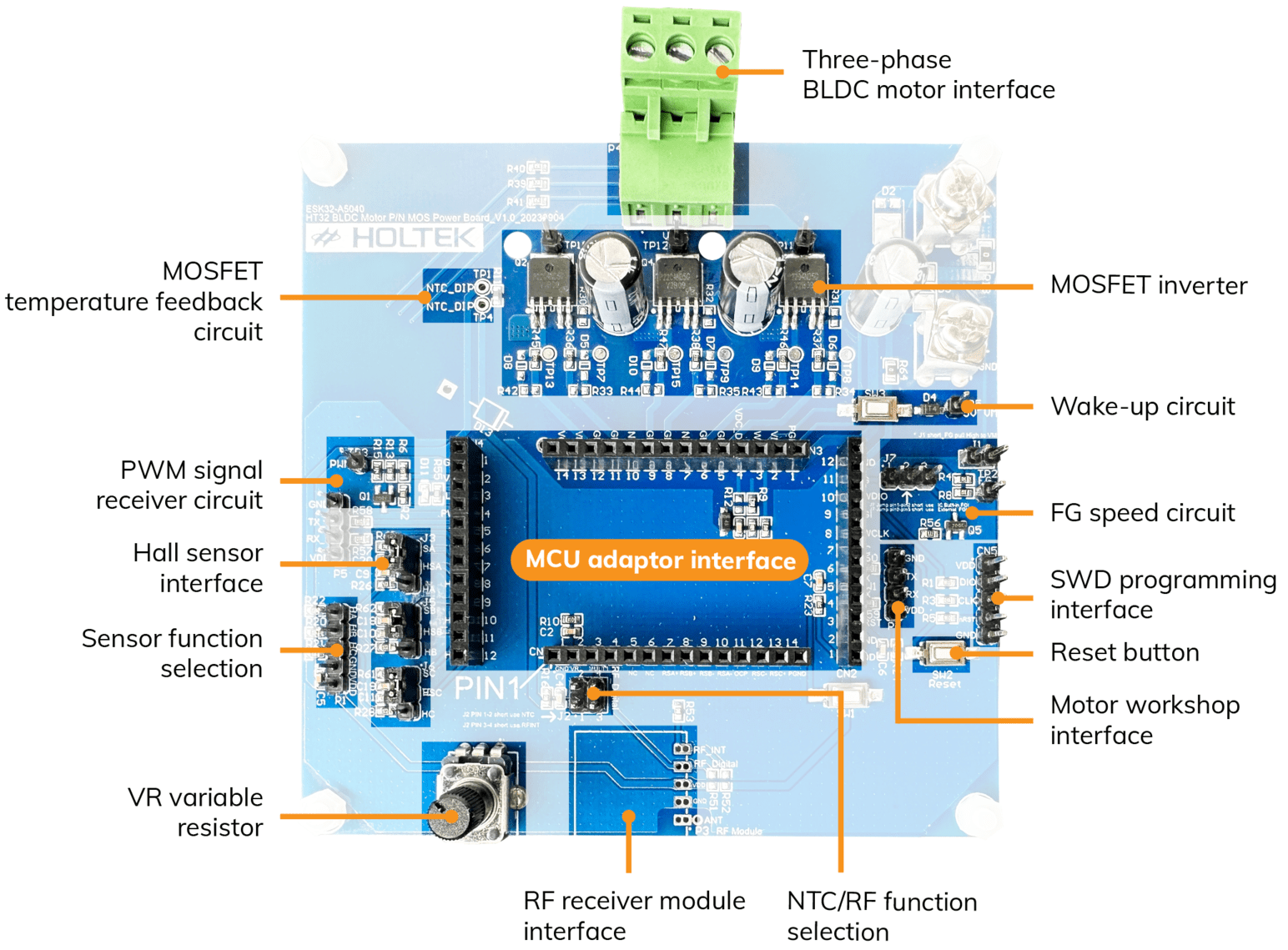

HARDWARE OVERVIEW
Refer to the datasheet of MCU adaptor ESK32-A5D30 in the 'Document' label for more details.
The HT32F Series BLDC Motor Workshop provides a complete suite of hardware and software resources for BLDC Motor application development.
These resources include the FOC algorithm library as well as PC software, which helps users greatly reduce their three-phase BLDC Motor product development time and also significantly reduces the required technical threshold to enter the BLDC motor product field.
