The product is a development board dedicated designed for the BLDC MCU HT32F65C40F. It needs to be used with the development platform, BLDC Motor Workshop.
You can configure multiple parameters on the BLDC Motor Workshop and generate the program codes. The workshop also provides a real-time graphical display without an oscilloscope.
⬥ Please contact Holtek to receive the BLDC Motor Workshop software.
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
FEATURES
Input voltage: DC 12V~32V
Max. DC Bus current: 1A
Max. motor phase current: ±3.5A
R_Shunt (Phase): 0.05Ω/2512/1%/2W
DC Bus voltage divider ratio: 1/10
Gate-driver polarity:
- Low side active low
- High side active high
Supports three-phase BLDC motors
Includes RF receiver module interface
Dimension: 67 x 60 x 36 mm
Net weight: 26.5g

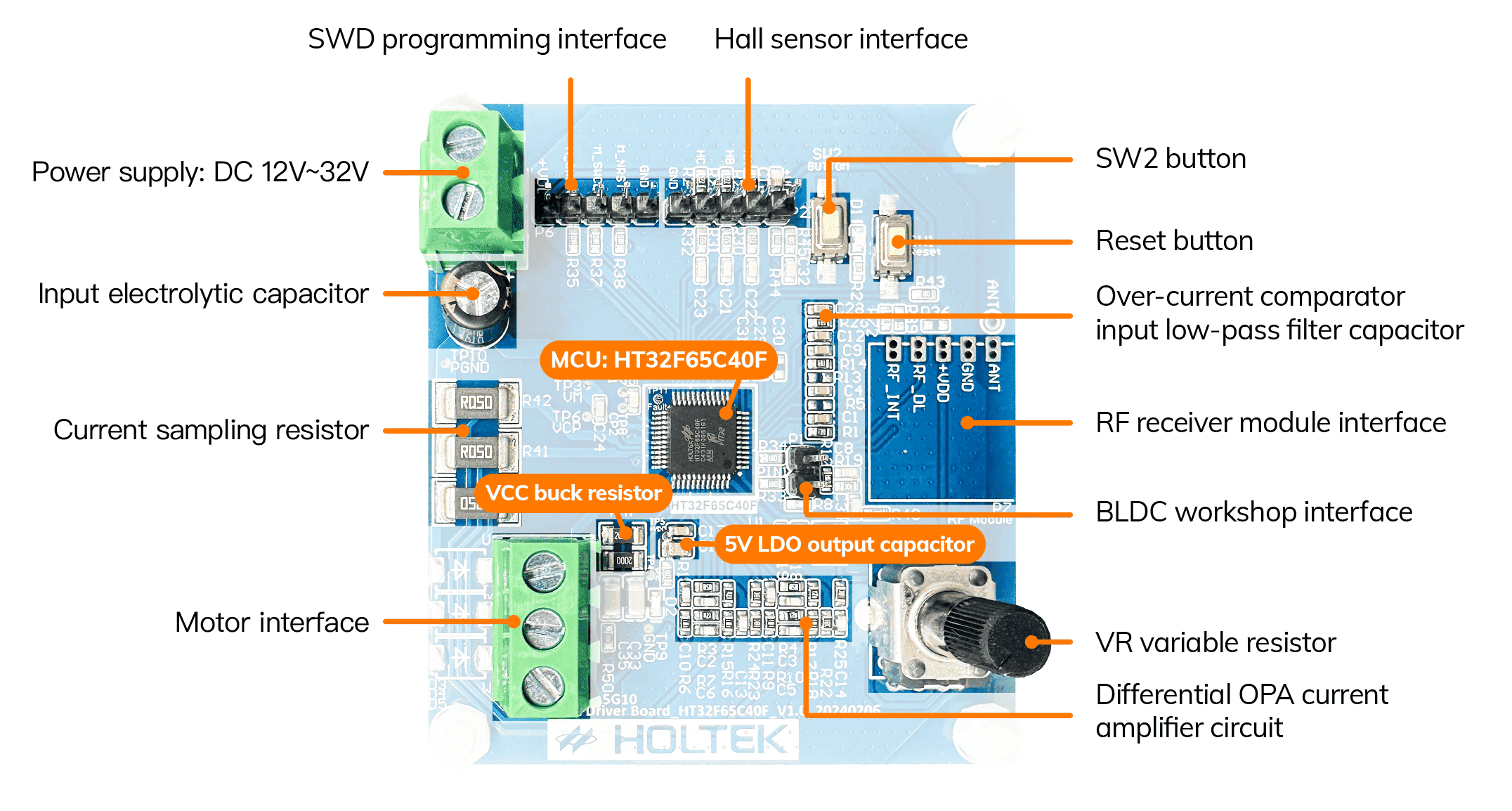

HARDWARE OVERVIEW
DEVELOPMENT ENVIRONMENT
RESOURCES
MCU：Holtek HT32F65C40F, 32-Bit Arm® Cortex®-M0+ BLDC MCU with 3-Channel 32 V Half-Bridge Driver, including datasheet, package information, etc.
The HT32F Series BLDC Motor Workshop provides a complete suite of hardware and software resources for BLDC Motor application development.
These resources include the FOC algorithm library as well as PC software, which helps users greatly reduce their three-phase BLDC Motor product development time and also significantly reduces the required technical threshold to enter the BLDC motor product field.
