30mA LDO HT7150-1 SOT89 (10 pieces)

US$1.21
In stock
Quantity
100 sets (1 set = 10 pieces)
Product ID
HT7150-1-SOT89
30mA LDO HT7150-1 SOT89 (5 pieces)

Description

The HT71xx-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

The output voltage of HT7150-1 is 5.0V.

NOTE

  1. Each unit includes 10 pieces of IC.

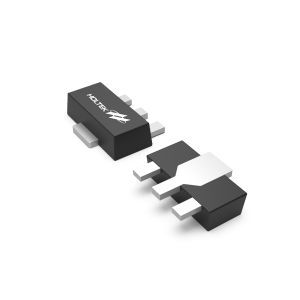

  2. The product image is for showing the product appearance only. Please check document for detail package information.
  3. The MOQ of tape and reel is 1000 pieces.
    Please feel free to contact us if needed.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.21
10-99 15% US$1.03
100-499 25% US$0.91
500+ 35% US$0.79
For more quantity discounts please contact us
Follow Us for More Updates!
30mA LDO HT7150-1 SOT89 (5 pieces)

Features

  1. Low power consumption
  2. Low voltage drop
  3. Low temperature coefficient
  4. High input voltage (up to 30V)
  5. Quiescent current 2.5µA
  6. Output current : 30mA
  7. Output voltage accuracy: ±3%

Selection Table

LDO SeriesHT71xx-1HT71xx-2HT71xx-3
Maximum Input Voltage30V30V30V
Typical Current Consumption 2.5µA 2.5µA 1.0µA
Tolerance±3%±1%±2%
ProtectionsSoft-StartSoft-StartSoft-Start

Resources

  1. IC: Holtek HT71xx-1, 30mA TinyPower™ LDO (including the latest datasheet, package information, etc.)
  2. Application Note: AN0553, Application Guideline for HT75xx-1/-2/-3,HT71xx-1/-2/-3, HT72xx, HT78xx, HT73xx
More Information
HS Code (reference) 8542.39.00.22-8
