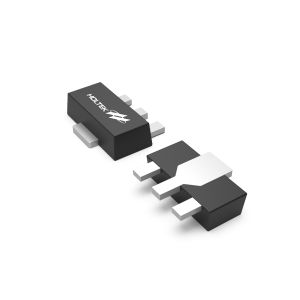

30mA LDO HT7150-2 SOT89 (10 pieces)
US$1.61
(Excl. Tax)
In stock
Quantity
65
sets (1 set = 10 pieces)
Product ID
HT7150-2-SOT89
Description
The HT71xx-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.
Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
The output voltage of HT7150-2 is 5.0V.
NOTE
- Each unit includes 10 pieces of IC.
- The product image is for showing the product appearance only. Please check document for detail package information.
- The MOQ of tape and reel is 1000 pieces.
Please feel free to contact us if needed.
Quantity Discounts
| Select | Quantity | Discount | Unit price |
| 1-9 | - | US$1.61 | |
| 10-99 | 15% | US$1.37 | |
| 100-499 | 25% | US$1.21 | |
| 500+ | 35% | US$1.05 |
Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 30V)
- Quiescent current 2.5µA
- Output current : 30mA
- Output voltage accuracy: ±1%
Selection Table
| LDO Series | HT71xx-1 | HT71xx-2 | HT71xx-3 |
|---|---|---|---|
| Maximum Input Voltage | 30V | 30V | 30V |
| Typical Current Consumption | 2.5µA | 2.5µA | 1.0µA |
| Tolerance | ±3% | ±1% | ±2% |
| Protections | Soft-Start | Soft-Start | Soft-Start |
Resources
| HS Code (reference) | 8542.39.00.22-8 |
|---|
