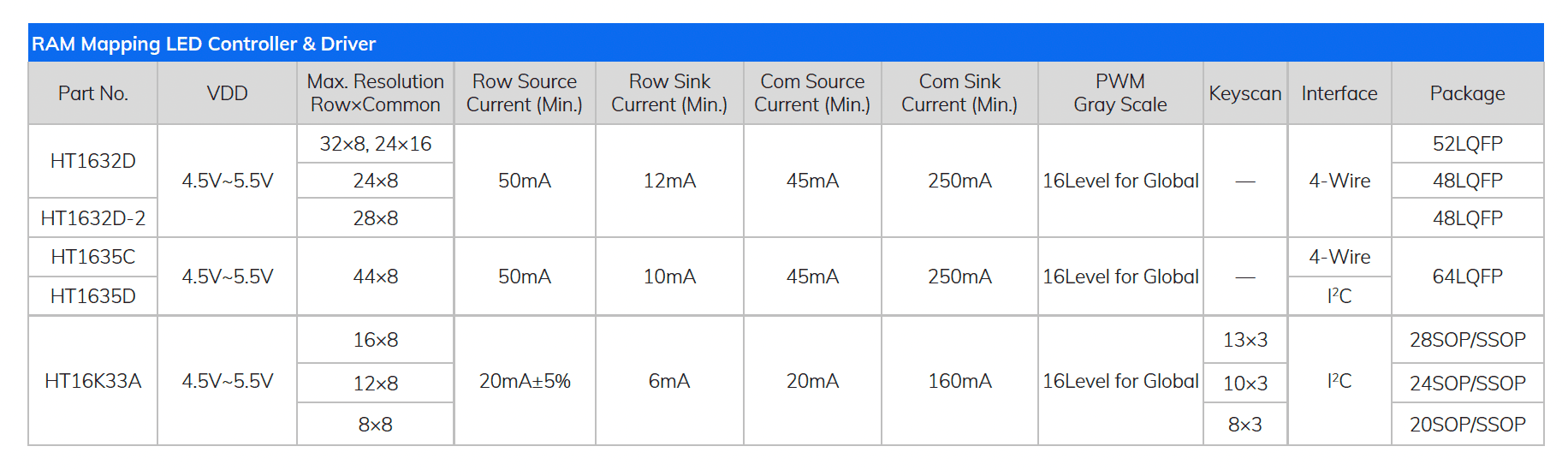

The HT16K33A is a memory mapping and multi-function LED controller driver. The maximum display segment numbers are 128 patterns (16 segments and 8 commons) with a 13×3 (MAX.) matrix key scan circuit.
The HT16K33A's software is suitable for multiple LED applications including LED modules and display subsystems.
NOTE
Each purchasing unit includes 5 pieces of IC.
The product image is for showing the product appearance, the pin count shown may not match the product pin count.
