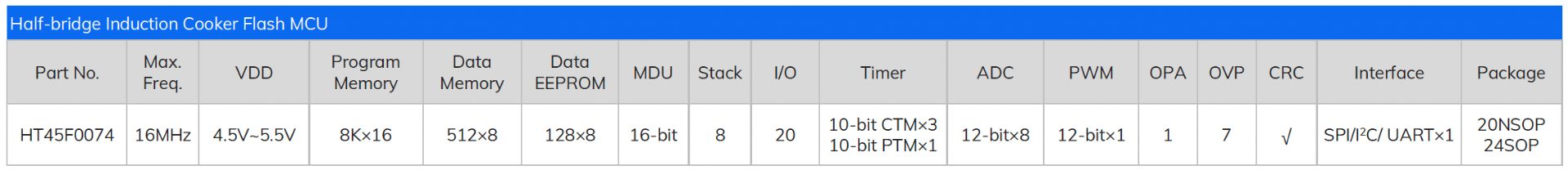

The HT45F0074 is a Holtek 8-bit half-bridge induction cooker Flash MCU. It includes an integrated 12-bit A/D Converter, seven over-voltage protection circuits, phase detection and other protection mechanisms, complementary PWM outputs and adjustable dead time insertion circuits. In addition, it also integrates a programmable gain operational amplifier and a serial interface module to allow connection and communication with an external control panel.
The HT45F0074 provides multiple protection features, high operating efficiency, long service life and a higher heating power in a range of 3.5KW~15KW. It is widely used in high-power commercial induction cookers.
NOTE
Each purchasing unit includes 5 pieces of IC.
The product image is for showing the product appearance, the pin count shown may not match the product pin count.
Seven sets of over voltage protection circuits with interrupts
- Providing over voltage protections
- Providing Zero Current Switch (ZCS) signal outputs, OVP0INT and OVP1INT, for cookware detection
- OVP2INT, OVP3INT and OVP4INT can trigger
