BMS Workshop HT45F8650 28SSOP MCU Adaptor Board ESK-BMS-865028

US$3.00
In stock
Quantity
6 pieces
Product ID
ESK-BMS-865028
DESCRIPTION

BMS (Battery Management System) is a system to detect the status of Li-ion batteries and control the charge and discharge promptly to keep the operation safe and extend battery life. Without BMS, Li-ion batteries may damage or explode due to improper use.

This product is a MCU adaptor board of HT45F8650 28SSOP. You can use it with development board, ESK-BMS-200, voltage calibration board, and development platform, the BMS Workshop, to complete a BMS management system.

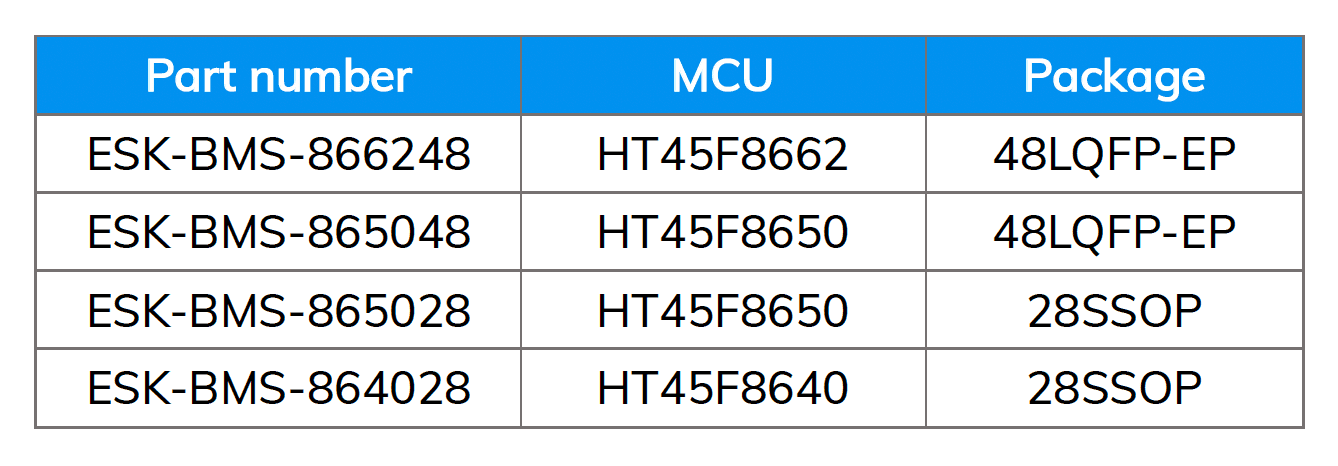

There are four MCU adaptors that can use with ESK-BMS-200:

In the workshop, you can set multiple parameters and then generate program codes and schematics. Codes can be programmed into the MCU adaptor board via e-Link and HOPE3000 for e-Link software. A programmed MCU provides the BMS protection functions.

BMS Workshop includes seven protection functions: charge protection, discharge protection, charger voltage protection, charge current protection, short-circuit protection, and temperature protection.


Product information

Dimension: 35 x 35 x 10 mm
Net Weight: 6g


Follow Us for More Updates!
PRODUCT FEATURES
  1. Operating voltage: 1.8V to 5.5V
  2. Holtek provides the development platform, BMS workshop
  3. 5V/50mA internal voltage regulator with ±1% accuracy
  4. Divided ratio accuracy of 1/n ± 0.5%
  5. Cell Charging Balance Switches
ASSEMBLY TO NOTE

It is important to make sure the direction of the MCU adaptor is correct when inserting it into the development board:

(1) The MCU part number should be on the front side.
(2) The triangle should be on the lower right of the adaptor.

Required Materials

  1. HT45F86xx series development board: ESK-BMS-200 (cannot use with the HT45F85x0 series development board)
  2. Voltage calibration board: ESK-BMS-8S02 or BMS-WS05
  3. Programming tool: e-Link and HOPE3000 for e-Link
  4. Development platform: BMS Workshop
Why do I need the Li-ion battery protection functions?

If the Li-ion battery is used improperly, the battery will be damaged, and there may be an explosion accident.
The protection functions provided by the BMS workshop are used to prevent them.

  1. Charge / discharge protection
    Over-discharge: lead Li-ion batteries to damage and degrade.
    Overcharged: Li-ion battery can cause an explosion. It is very dangerous!
  2. Charger voltage protection
    This protection function is used to make sure the charger voltage is within a reasonable range.
    Charger's voltage is too low: batteries' power flows back to the charger.
    Charger's voltage is too high: large voltage difference damages the charger and batteries.
  3. Charge / discharge current protection
    Charge current is too small: it needs to take a longer time for charging.
    Charge current is too large: the batteries' temperature raises sharply and causes damaged.
    Large discharge current: lead batteries to overheat and degrade.
  4. Short-circuit protection
    The protection system can interrupt voltage output immediately if a short circuit occurs during operation.
  5. Temperature protection
    If Li-ion batteries keep working at high temperatures, battery circling is reduced.
RESOURCES
  1. MCU: HT45F8650, Li-Battery Protection Flash MCU, including datasheet, package information, etc.
  2. Application note: AN0543EN, HT45F85xx/HT45F86xx Lithium Battery Protection Application Note
Youtube
More Information
HS Code (reference) 8504.50.90.00-5
