433MHz Parallel OOK Transmitter Module BCM-68F2130-X02

US$ 2.20
In stock
Quantity
293
Product ID
BCM-68F2130-X02

Description

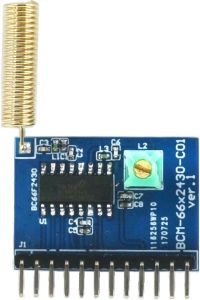

This product is a parallel RF wireless transmitter module, the frequency is 433.92MHz. The module has 12 pins, of which there are four pins can be connected to external buttons. When a button is pressed, making the signal at low state, the module will be triggered and transmit the button status signal. The four buttons can be operated at the same time, so we call it a parallel transmitter module.

The communication protocol is proprietary, therefore the module must use with a corresponding RF wireless receiver module (PRODUCT ID: BCM-68F2420-C01) to form a complete transmit / receive function.

To facilitate the use of the transmitter modules, we make the RF wireless transmitter module evaluation board (PRODUCT ID: BCE-GENTX-X01). The evaluation board has buttons, LED, battery slot, etc., it can save your time to make peripheral circuits. By simply inserting the transmitter module into the evaluation board, you can quickly start using the transmitter module.

The MCU of this module is BC68F2130 from Holtek Semiconductor Inc., it has 2K x16 program memory. We have another transmitter module (Product ID: BCM-68F2123-X02) which uses BC68F2123 MCU. BC68F2123 has 1Kx14 program memory, it probably helps cost control when your design goes to mass production.


Quantity Discounts refresh image
Select Quantity Discount Unit Price
1-9 - US$ 2.20
10-99 10% US$ 1.98
100+ 15% US$ 1.87
Follow Us
  • Details
  • Documents

Features:

  1. Operating Voltage: 2.2~3.6V
  2. Modulation: AM (OOK)
  3. Frequency: 433.92 MHz
  4. Output Power: 10dBm (10mW)
  5. Operating Temperature: -40 ~ +85℃

Product Information:

  1. Dimension(L x W x H): 20 x 25 x 10 (mm), not including antenna and pin stick
  2. Weight: 2.8g, not including antenna and pin stick
  3. Packing List:
    1. BCM-68F2130-X02 module x 1
    2.Spring antenna 433.92MHz x1
    3.12-pin, 90-degree pin stick x 1

Resources

MCU: Holtek BC68F2130, Sub-1GHz RF Transmitter Flash MCU
Application Note: AN0430E BC68F2130/2140 OOK/FSK RF Transmitter Application Guidelines (with example codes)
Application Note: AN0484E BC68F2130 FSK Application Example (with example codes)
