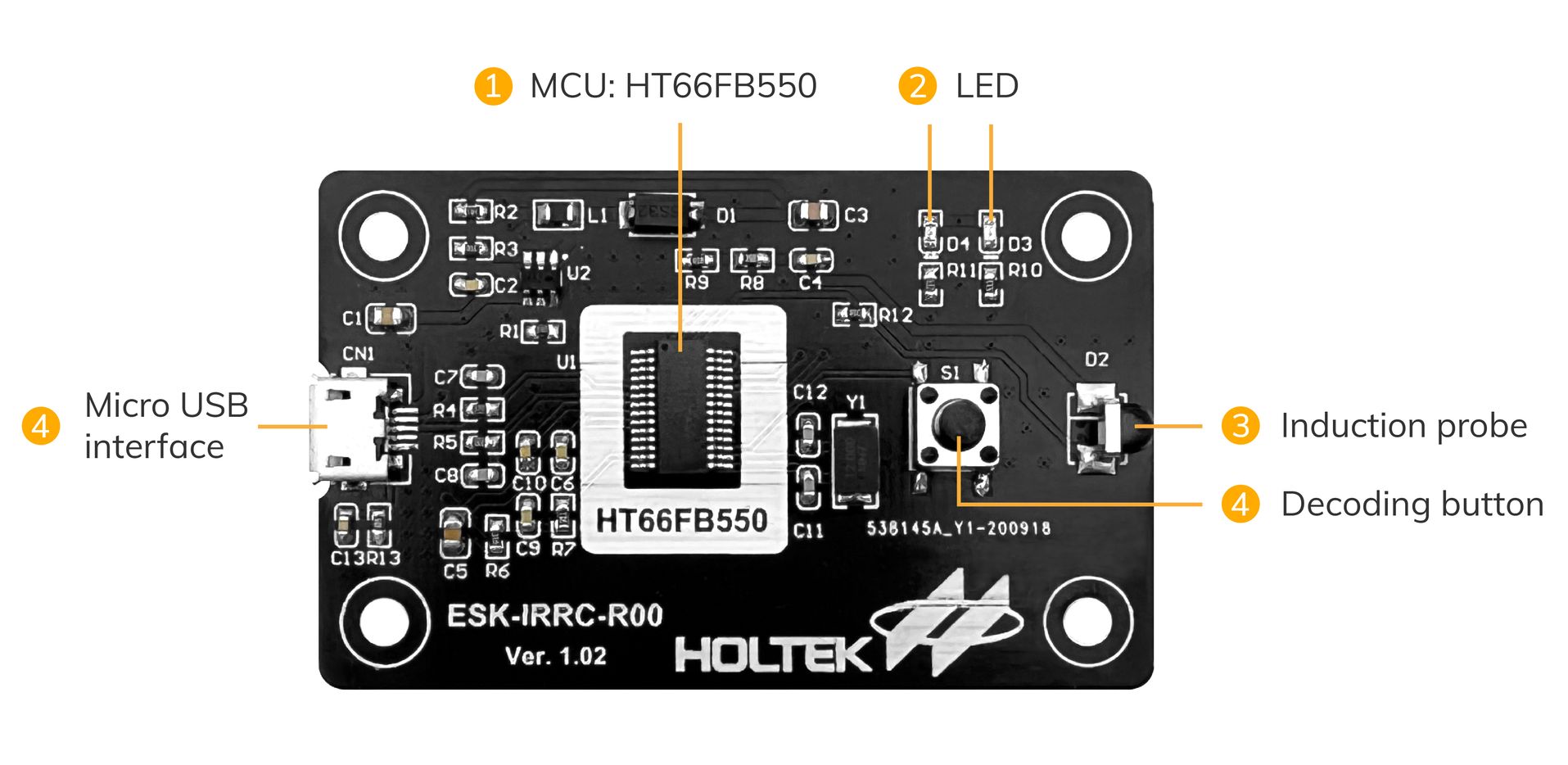

The ESK-IRRC-R00 is a decoder of the infrared remote controller. It needs to be used with an infrared remote control development board and the development platform, the infrared remote controller workshop developed by Holtek.
The ESK-IRRC-R00 captures signals after users connect it to a computer and set up the development platform. It captures infrared carrier signals at a rate of 16MHz and uploads the data to the development platform. Users can easily develop remote control products with it.
Product information
Dimension: 61 x 37 x 5 mm
Net weight: 9.9g
Packing list:
(1) Infrared remote control decoder ESK-IRRC-R00 x 1
(2) Nylon standoffs x 4
Hardware
- ESK-IRRC-R00 x 1
- e-Link x 1
- Computer x 1
- Micro USB cable x 1
- Infrared remote control development board (ESK-IRRC-T00 or ESK-IRRC-T00)
- The remote controllers to be decoded
Software
- Infrared remote controller workshop
PRODUCT INSTRUCTIONS

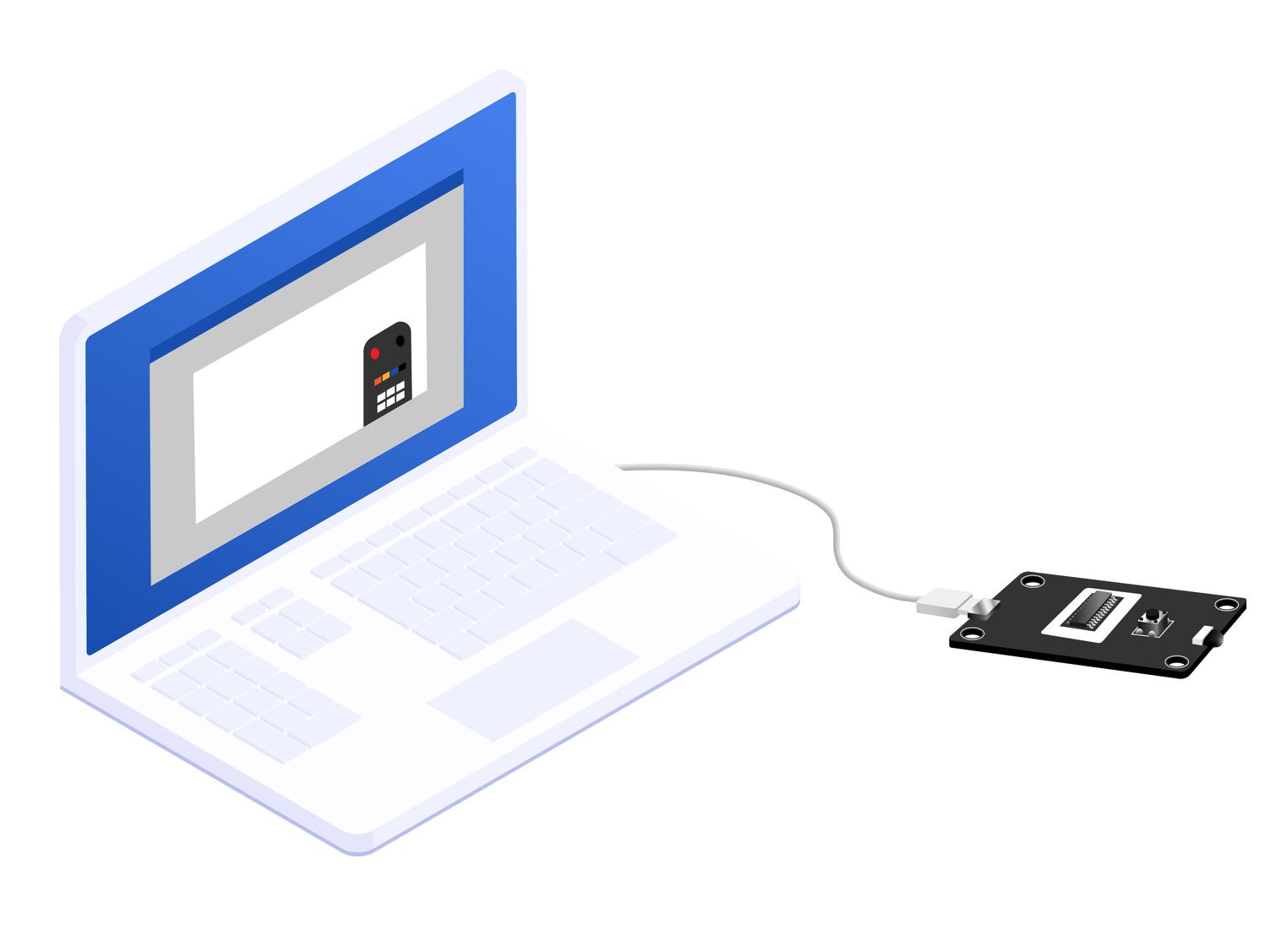

Connect the ESK-IRRC-R00 to a computer and set up the Infrared remote controller workshop.
Create a project: Choose the “Remote control” and “Develop Mode”
(please choose the “Code Wave Mode” when using the ESK-IRRC-R00).
Decoding
(1) Press the decoding button on the ESK-IRRC-R00 or click the “Start Decode” button on the software to
decode remote controllers.
(2) Aim the induction probe at the remote controller and press the button on the remote controller within
6 seconds after the decoder lights a red LED.
(3) If the decoder receives the signal successfully, the green LED is on. Otherwise, the red LED flashes.
Click the “Saved Key Value” button on the software to save the signal.
Fill in the address.
Key configuration: users can choose the number of keys to be used on the development board, drag an I/O icon
into the key position, and generate the data. (configuration order: PB7 to PB0; PA7 to PA0)
Open HT-IDE3000 software and import the above data to rebuild a project.
Open HOPE3000 software and program the project to the remote control development board via e-Link.
