LCD Infrared Remote Control Development Board ESK-IRRC-T01

US$26.00
In stock
Quantity
11 pieces
Product ID
ESK-IRRC-T01
DESCRIPTION

The ESK-IRRC-T01 is an LCD infrared remote control development board that includes Holtek 8-bit MCU, HT67F2432, 15-key buttons, and an IR LED. It is suitable to develop a remote controller with LCD.

The ESK-IRRC-T01 needs to be used with the development platform, infrared remote controller workshop developed by Holtek. With the development platform, users can choose user define mode or use code wave mode and with the decoder, the ESK-IRRC-R00, to develop products.

Product information

Dimension: 150 x 56 x 10 mm
Net weight: 42.3g
Packing list: LCD Infrared Remote Control Development Board ESK-IRRC-T01 x 1

Add to Wish List
Email
Follow Us for More Updates!

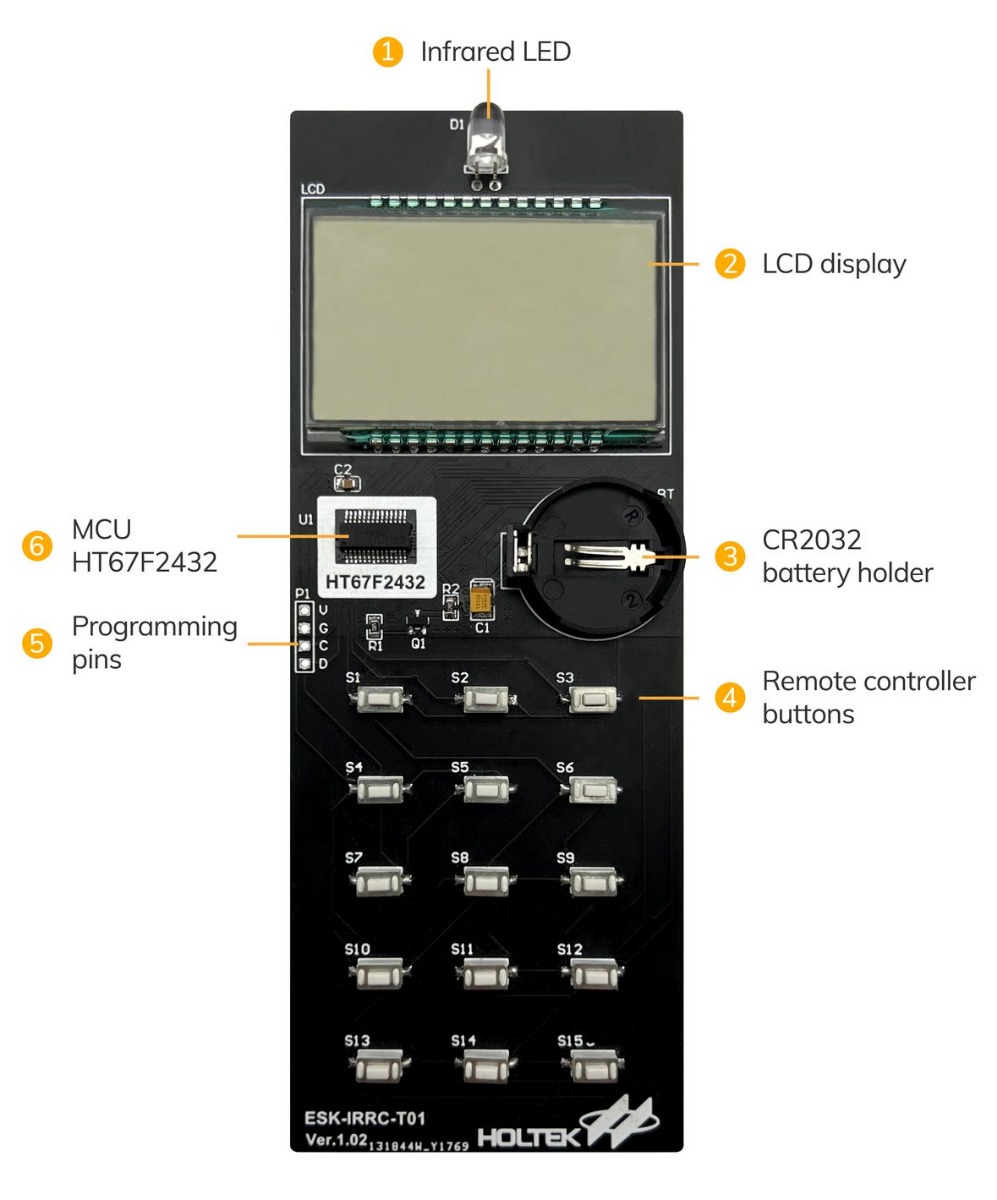

HARDWARE OVERVIEW

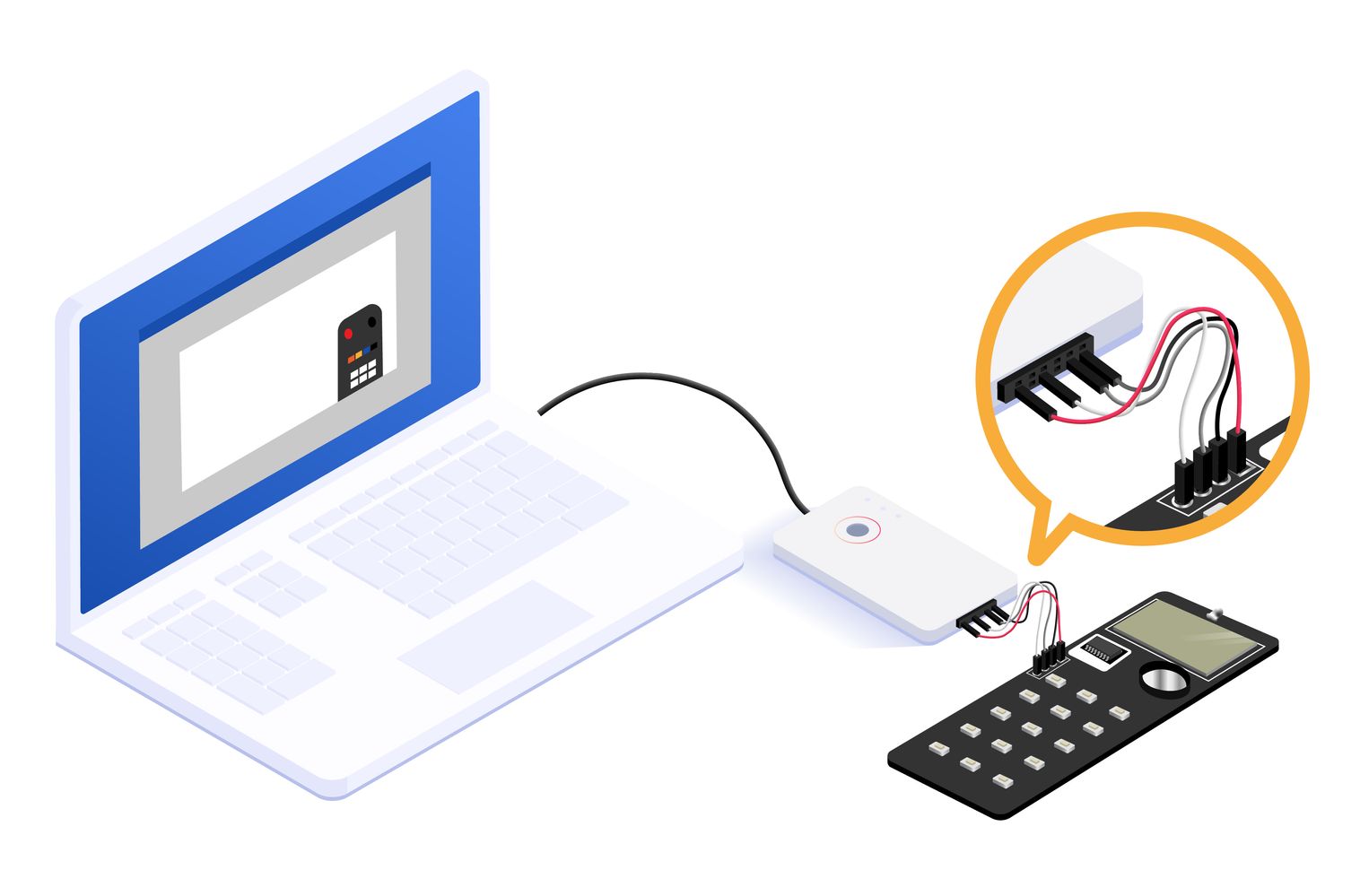

WIRING
PREPARATION OF TOOLS
  1. Hardware
    - ESK-IRRC-T00 x 1
    - e-Link x 1
    - Computer x 1
    - Micro USB cable x 1
    - Dupont cable x 1
    - Decoder ESK-IRRC-R00 x 1 (dispensable)
  2. Software
    - Infrared remote controller workshop
PRODUCT INSTRUCTIONS
  1. Connect ESK-IRRC-T01 to a computer and set up the development platform software.
  2. Create a project:
    (1) Remote control: LCD type Remote Controllers.
    (2) Two kinds of development modes: code wave mode, user define mode.
  3. Development
    (1) User define mode: users can define all the parameters.
    (2) Code wave mode: It needs to use with a decoder in this mode.
       Please refer to the product page of the ESK-IRRC-R00 for more information.

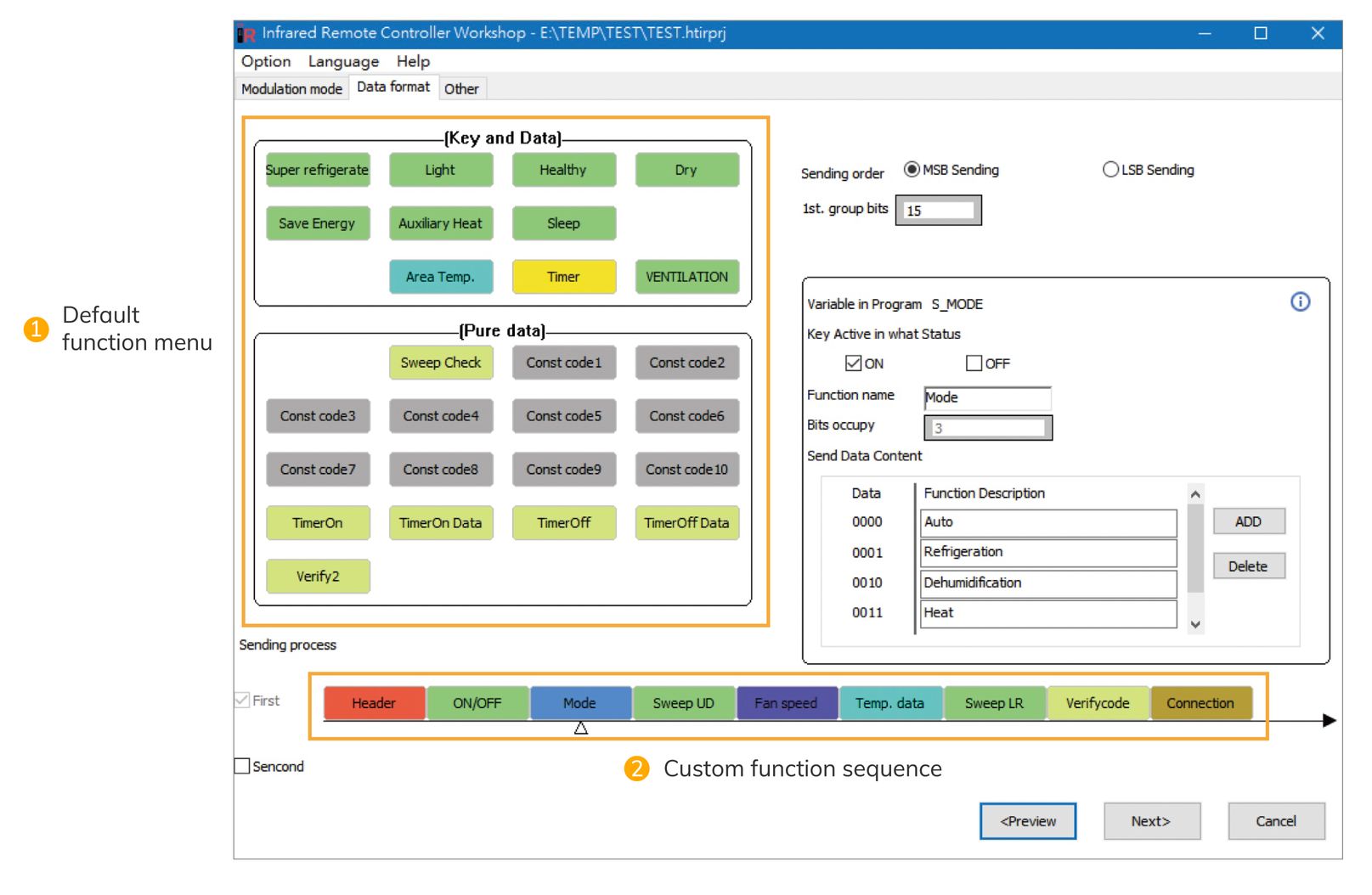

  4. Data format configuration: there are various optional block icons designed according to different functions. Users can drag the functions they require into sending process.

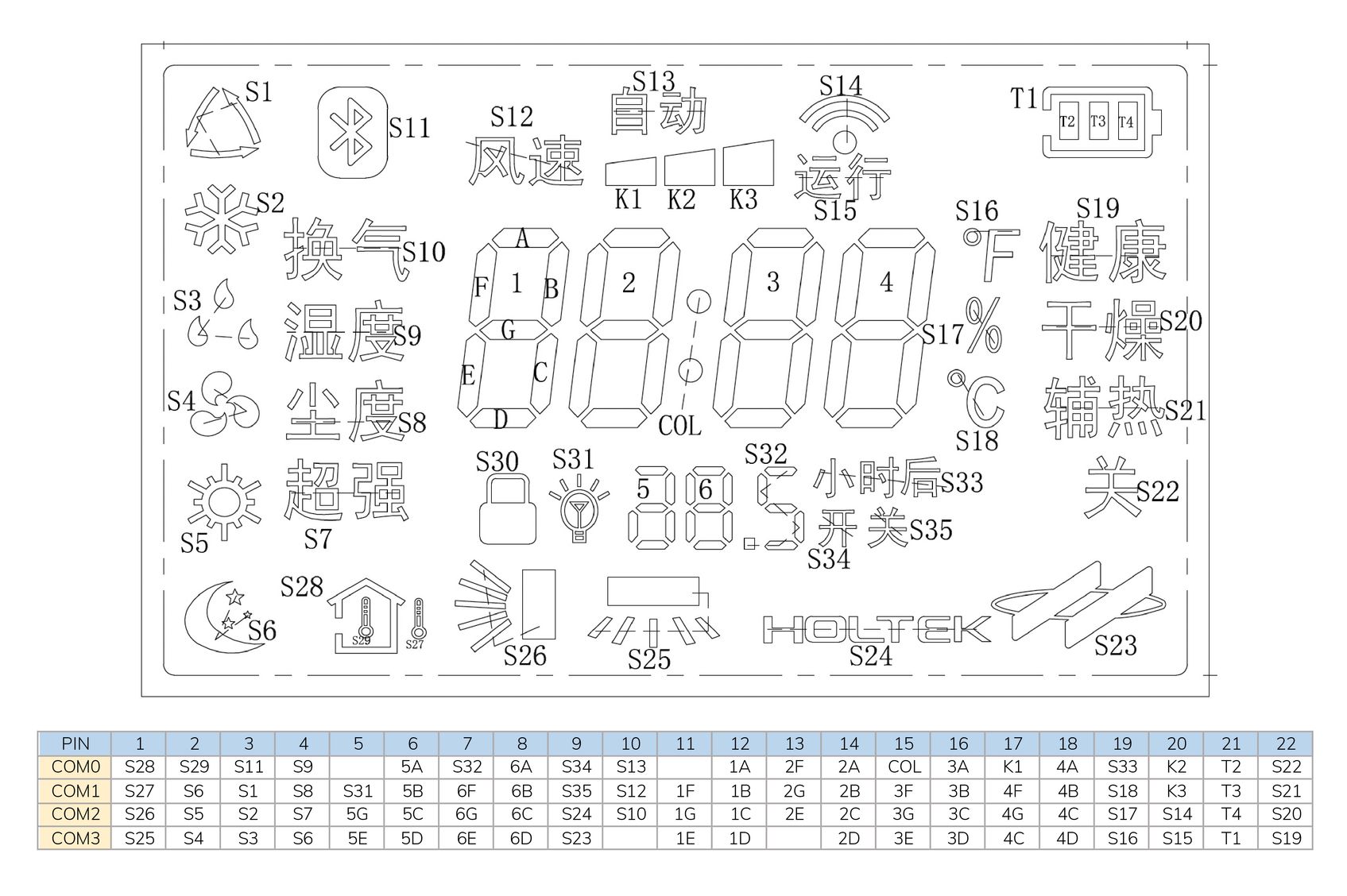

  5. LCD configuration: please refer to the picture below for configuration.
    For example, the S6 is a sleeping icon on the LCD. Users need to drag the sleeping icon into COM3 of the fourth column if they require the function.
  6. Key configuration: drag an I/O icon into the key position and drag the function keys on the right into the fields on the left. (users can arrange the order of function keys)
  7. Open HT-IDE3000 software and import the above data to rebuild a project.
  8. Open HOPE3000 software and program the project to the remote control development board via e-Link.
RESOURCES
  1. Development platform: Infrared Remote Controller Workshop, including user's guide and software, etc.
  2. The help menu in the software includes user guide, MCU datasheet, development board schematic design, and infrared remote control knowledge base.
User's Guide V1.00 (1.64 MB)
Knowledge Base V1.10 (582.28 kB)
Schematics V1.00 (184.92 kB)
LCD Schematics (Simplify Chinese version) (670.71 kB)
